0203 764 9380
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1000 x 600
Levels: 3
Load Per Shelf (UDL): 610kg
Code: APPK
£179.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1000 x 900
Levels: 3
Load Per Shelf (UDL): 300kg
Code: APQF
£199.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1200 x 600
Levels: 3
Load Per Shelf (UDL): 590kg
Code: APPL
£188.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1200 x 900
Levels: 3
Load Per Shelf (UDL): 300kg
Code: APQG
£219.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1400 x 600
Levels: 3
Load Per Shelf (UDL): 500kg
Code: APPM
£224.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1400 x 900
Levels: 3
Load Per Shelf (UDL): 320kg
Code: APQH
£244.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1825 x 600
Levels: 3
Load Per Shelf (UDL): 850kg
Code: APPN
£257.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1825 x 900
Levels: 3
Load Per Shelf (UDL): 440kg
Code: APQI
£274.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1900 x 600
Levels: 3
Load Per Shelf (UDL): 810kg
Code: APPO
£263.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 1900 x 900
Levels: 3
Load Per Shelf (UDL): 440kg
Code: APQJ
£279.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 2300 x 600
Levels: 3
Load Per Shelf (UDL): 670kg
Code: APPP
£314.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 2300 x 900
Levels: 3
Load Per Shelf (UDL): 500kg
Code: APQK
£339.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 2700 x 600
Levels: 3
Load Per Shelf (UDL): 550kg
Code: APPQ
£349.99
1x Mecalux Longspan Shelving Extension Bay - Blue & Orange
2000 x 2700 x 900
Levels: 3
Load Per Shelf (UDL): 550kg
Code: APQL
£419.99
- Description
- Product spec
- Instructions
- Delivery & Returns

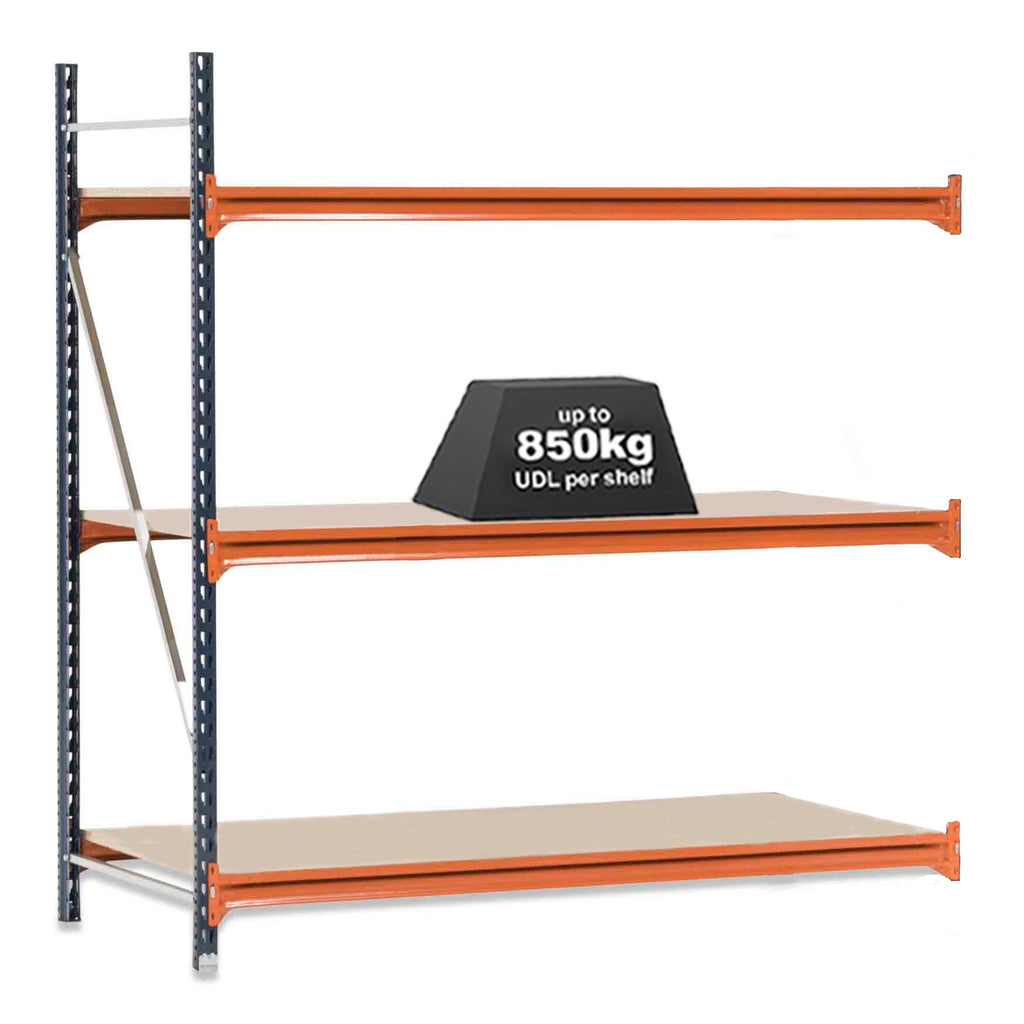

Key Features of Mecalux Longspan Shelving
- 1x Extension Bay for Mecalux Longspan shelving 2000mm high
- Extension bay includes 1x fully assembled upright frame
- Industrial grade steel, Ideal for storing heavy duty, bulky loads
- Tested to FEM standards
- Upright frame has a blue powder coated finish
- Adjustable levels in height every 50mm

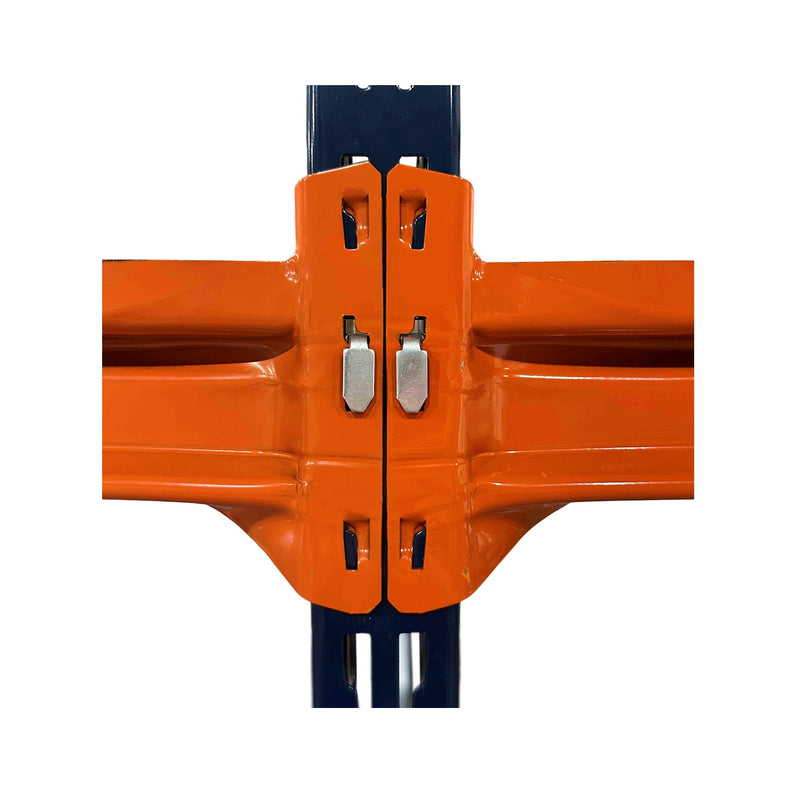

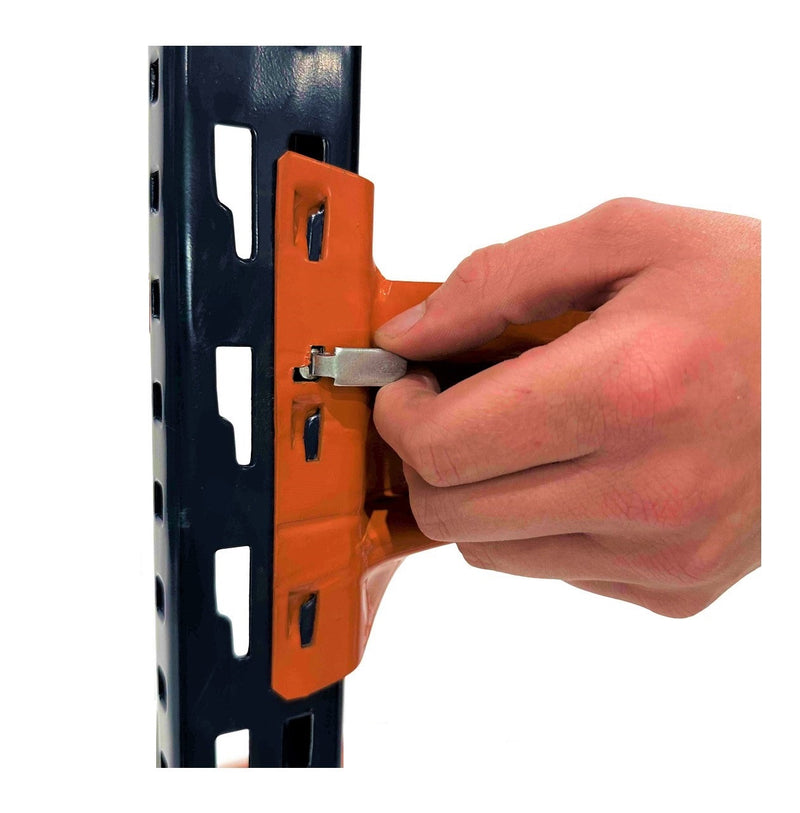

- 2x safety locking pins per beam for extra security and to prevent dislodging
- Powder coated Orange finish on the beams
- 3 x chipboard decks, 22mm thickness
- High load capacities per level for heavy duty storage (varies between the width of bay)
- Ground level can be used for pallet storage - no bottom beams required
- Floor fixings and steel leveling plates are provided
- Boltless assembly (except when fixing to the floor)
- Longspan shelving support beams are available separately for extra reinforcement to levels
- Pack offers are also available
UDL (Uniformly Distributed Load) - The load capacities stated are the maximum weights each level can hold. This weight needs to be evenly distributed across each level.
Mecalux Longspan Shelving is one of our most robust shelving units. Perfect for use in an industrial/warehouse environment, these units can be used for a wide range of storage due to their large load capacity. It is constructed using high quality, thick upright frames and beams, once assembled these shelving units are impressively sturdy and reliable. Multiple sizes are available for your storage requirements, choose from up to 2700mm wide units, great for bulkier storage.
Ideal Uses:
- Industrial Environment
- Warehouses
- Heavy Duty Storage
| Code | Frame Height (mm) | Depth (mm) | Beam Width (mm) | External Bay Width (mm) | Clear Entry per Bay (mm) |
|---|---|---|---|---|---|
| APPK | 2000 | 600 | 1000 | 1100 | 990 |
| APPL | 2000 | 600 | 1200 | 1300 | 1190 |
| APPM | 2000 | 600 | 1400 | 1500 | 1390 |
| APPN | 2000 | 600 | 1825 | 1925 | 1815 |
| APPO | 2000 | 600 | 1900 | 2000 | 1890 |
| APPP | 2000 | 600 | 2300 | 2400 | 2290 |
| APPQ | 2000 | 600 | 2700 | 2800 | 2690 |
| APQF | 2000 | 900 | 1000 | 1100 | 990 |
| APQG | 2000 | 900 | 1200 | 1300 | 1190 |
| APQH | 2000 | 900 | 1400 | 1500 | 1390 |
| APQI | 2000 | 900 | 1825 | 1925 | 1815 |
| APQJ | 2000 | 900 | 1900 | 2000 | 1890 |
| APQK | 2000 | 900 | 2300 | 2400 | 2290 |
| APQL | 2000 | 900 | 2700 | 2800 | 2690 |
| Code | Levels | Shelf Thickness (mm) | Chipboard Thickness (mm) | Max. Load per Level | Total Bay Capacity |
|---|---|---|---|---|---|
| APPK | 3 | 57 | 22 | 610kg | 4000kg |
| APPL | 3 | 57 | 22 | 590kg | 4000kg |
| APPM | 3 | 57 | 22 | 500kg | 4000kg |
| APPN | 3 | 77 | 22 | 850kg | 4000kg |
| APPO | 3 | 77 | 22 | 810kg | 4000kg |
| APPP | 3 | 77 | 22 | 670kg | 4000kg |
| APPQ | 3 | 87 | 22 | 550kg | 4000kg |
| APQF | 3 | 57 | 22 | 300kg | 4000kg |
| APQG | 3 | 57 | 22 | 300kg | 4000kg |
| APQH | 3 | 57 | 22 | 320kg | 4000kg |
| APQI | 3 | 77 | 22 | 440kg | 4000kg |
| APQJ | 3 | 77 | 22 | 440kg | 4000kg |
| APQK | 3 | 77 | 22 | 500kg | 4000kg |
| APQL | 3 | 87 | 22 | 550kg | 4000kg |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK |
|---|
| Longspan Shelving | Assembly Instructions - Longspan Shelving | DOWNLOAD |
| Longspan Shelving | Guide - Longspan Shelving | DOWNLOAD |
