2x Mecalux Pallet Racking Bays - Holds 6 Standard pallets (1200w x 1000d mm) - Blue & Orange
2500 x 1350 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAE
£659.93 £626.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
2500 x 2700 x 900
Levels: 2
Load Per Level (UDL): 2200kg
Code: APAF
£779.93 £740.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
2500 x 2700 XL x 900
Levels: 2
Load Per Level (UDL): 3400kg
Code: APAG
£943.93 £896.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
2500 x 3300 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAH
£847.93 £805.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
2500 x 3300 XL x 900
Levels: 2
Load Per Level (UDL): 3200kg
Code: APAI
£1,103.93 £1,048.99
2x Mecalux Pallet Racking Bays - Holds 6 Standard pallets (1200w x 1000d mm) - Blue & Orange
3000 x 1350 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAJ
£710.93 £674.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3000 x 2700 x 900
Levels: 2
Load Per Level (UDL): 2200kg
Code: APAK
£830.93 £788.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3000 x 2700 XL x 900
Levels: 2
Load Per Level (UDL): 3400kg
Code: APAL
£994.93 £944.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3000 x 3300 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAM
£898.93 £853.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3000 x 3300 XL x 900
Levels: 2
Load Per Level (UDL): 3200kg
Code: APAN
£1,154.93 £1,096.99
2x Mecalux Pallet Racking Bays - Holds 6 Standard pallets (1200w x 1000d mm) - Blue & Orange
3500 x 1350 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAO
£758.93 £720.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3500 x 2700 x 900
Levels: 2
Load Per Level (UDL): 2200kg
Code: APAP
£878.93 £834.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3500 x 2700 XL x 900
Levels: 2
Load Per Level (UDL): 3400kg
Code: APAQ
£1,042.93 £990.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3500 x 3300 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAR
£946.93 £899.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
3500 x 3300 XL x 900
Levels: 2
Load Per Level (UDL): 3200kg
Code: APAS
£1,202.93 £1,142.99
2x Mecalux Pallet Racking Bays - Holds 6 Standard pallets (1200w x 1000d mm) - Blue & Orange
4000 x 1350 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAT
£830.93 £788.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
4000 x 2700 x 900
Levels: 2
Load Per Level (UDL): 2100kg
Code: APAU
£950.93 £902.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
4000 x 2700 XL x 900
Levels: 2
Load Per Level (UDL): 3400kg
Code: APAV
£1,114.93 £1,058.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
4000 x 3300 x 900
Levels: 2
Load Per Level (UDL): 1700kg
Code: APAW
£1,018.93 £967.99
2x Mecalux Pallet Racking Bays - Holds 12 Standard pallets (1200w x 1000d mm) - Blue & Orange
4000 x 3300 XL x 900
Levels: 2
Load Per Level (UDL): 3200kg
Code: APAX
£1,274.93 £1,210.99
2x Mecalux Pallet Racking Bays - Holds 8 Standard pallets (1200w x 1000d mm) - Blue & Orange
4500 x 1350 x 900
Levels: 3
Load Per Level (UDL): 1700kg
Code: APBD
£1,037.91 £985.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
4500 x 2700 x 900
Levels: 3
Load Per Level (UDL): 2100kg
Code: APBE
£1,217.91 £1,156.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
4500 x 2700 XL x 900
Levels: 3
Load Per Level (UDL): 2500kg
Code: APBF
£1,463.91 £1,390.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
4500 x 3300 x 900
Levels: 3
Load Per Level (UDL): 1700kg
Code: APBG
£1,319.91 £1,253.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
4500 x 3300 XL x 900
Levels: 3
Load Per Level (UDL): 2300kg
Code: APBH
£1,703.91 £1,618.99
2x Mecalux Pallet Racking Bays - Holds 8 Standard pallets (1200w x 1000d mm) - Blue & Orange
5000 x 1350 x 900
Levels: 3
Load Per Level (UDL): 1700kg
Code: APBI
£1,100.91 £1,045.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
5000 x 2700 x 900
Levels: 3
Load Per Level (UDL): 2100kg
Code: APBJ
£1,280.91 £1,216.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
5000 x 2700 XL x 900
Levels: 3
Load Per Level (UDL): 2500kg
Code: APBK
£1,526.91 £1,450.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
5000 x 3300 x 900
Levels: 3
Load Per Level (UDL): 1700kg
Code: APBL
£1,382.91 £1,313.99
2x Mecalux Pallet Racking Bays - Holds 16 Standard pallets (1200w x 1000d mm) - Blue & Orange
5000 x 3300 XL x 900
Levels: 3
Load Per Level (UDL): 2300kg
Code: APBM
£1,766.91 £1,678.99
2x Mecalux Pallet Racking Bays - Holds 10 Standard pallets (1200w x 1000d mm) - Blue & Orange
6000 x 1350 x 900
Levels: 4
Load Per Level (UDL): 1700kg
Code: APBN
£1,316.89 £1,250.99
2x Mecalux Pallet Racking Bays - Holds 20 Standard pallets (1200w x 1000d mm) - Blue & Orange
6000 x 2700 x 900
Levels: 4
Load Per Level (UDL): 1900kg
Code: APBO
£1,556.89 £1,478.99
2x Mecalux Pallet Racking Bays - Holds 20 Standard pallets (1200w x 1000d mm) - Blue & Orange
6000 x 2700 XL x 900
Levels: 4
Load Per Level (UDL): 2000kg
Code: APBP
£1,884.89 £1,790.99
2x Mecalux Pallet Racking Bays - Holds 20 Standard pallets (1200w x 1000d mm) - Blue & Orange
6000 x 3300 x 900
Levels: 4
Load Per Level (UDL): 1600kg
Code: APBQ
£1,692.89 £1,607.99
2x Mecalux Pallet Racking Bays - Holds 20 Standard pallets (1200w x 1000d mm) - Blue & Orange
6000 x 3300 XL x 900
Levels: 4
Load Per Level (UDL): 1800kg
Code: APBR
£2,204.89 £2,094.99
- Description
- Product spec
- Instructions
- Delivery & Returns
Key Features of Mecalux Pallet Racking

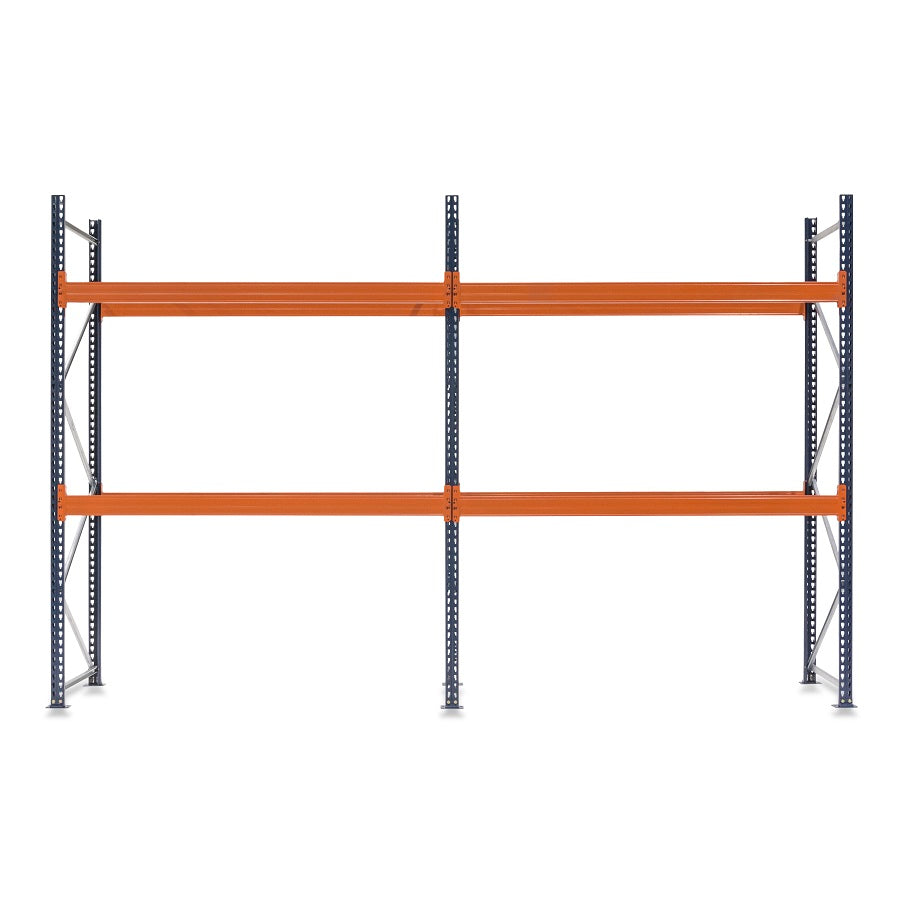

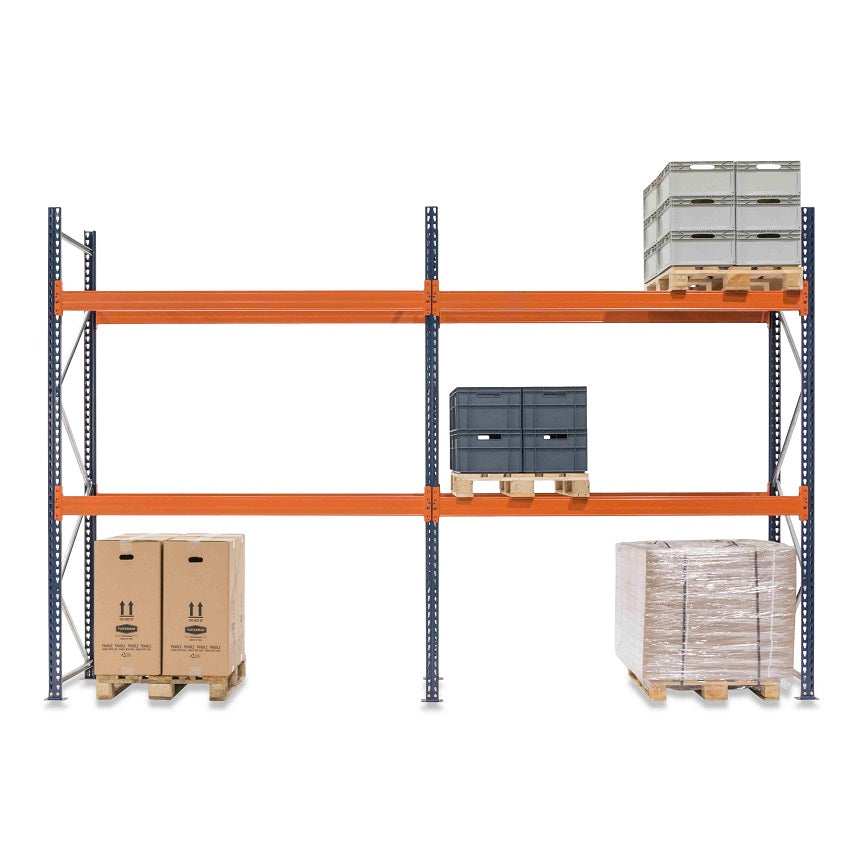

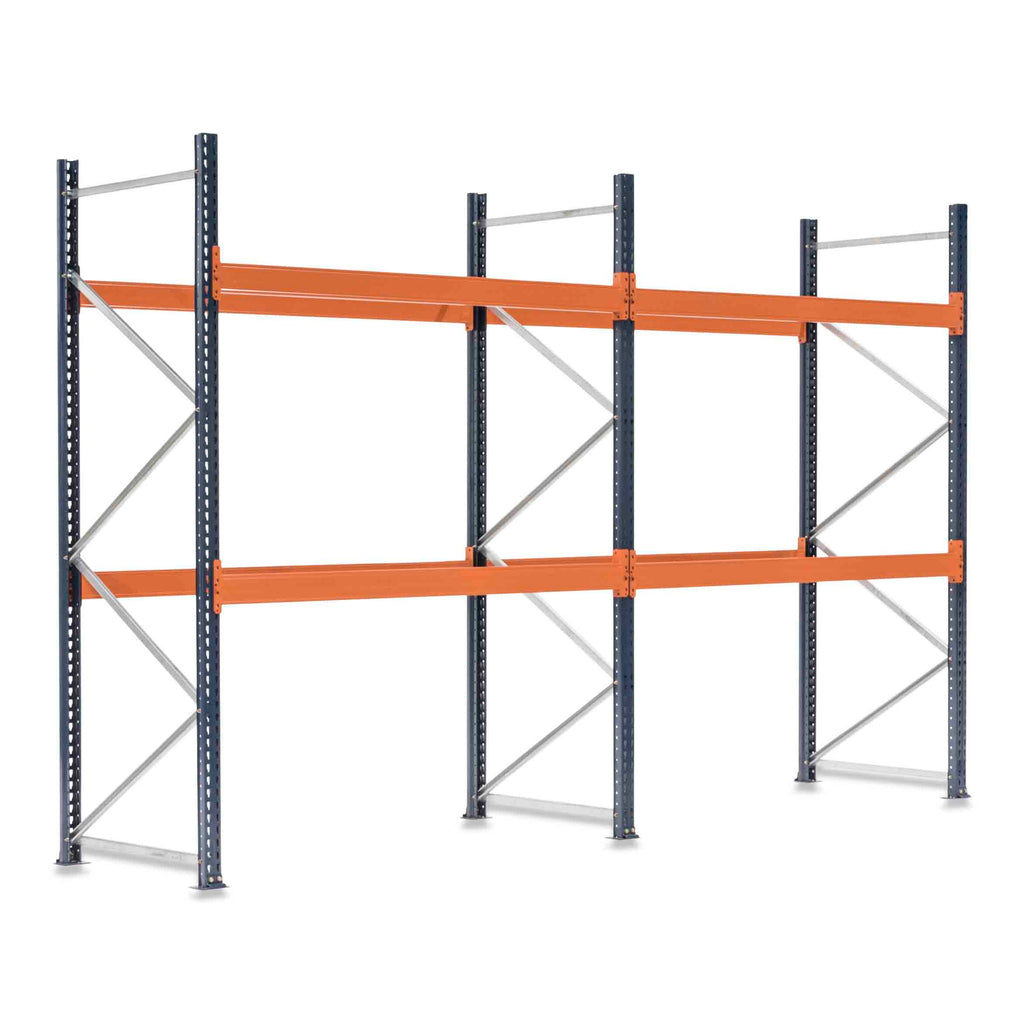

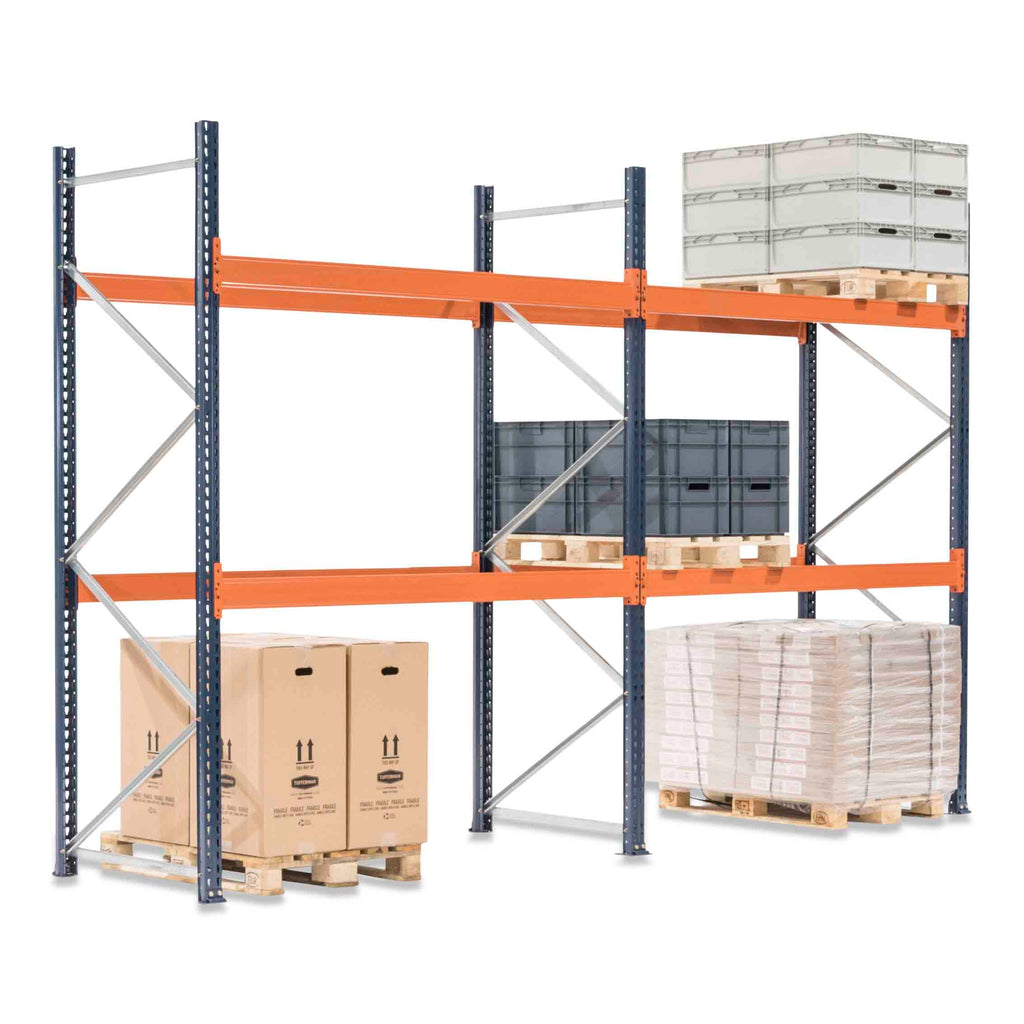

- 2x Mecalux pallet racking bays
- Suitable for storing Euro pallets - 1200w x 1000d (mm)
- The best method for storing your pallets and optimising storage space
- Industrial grade steel, Ideal for heavy duty use within your business
- Tested to FEM standards
- Upright frames are delivered fully assembled
- Blue uprights with a cataphoresis-electroplated finish

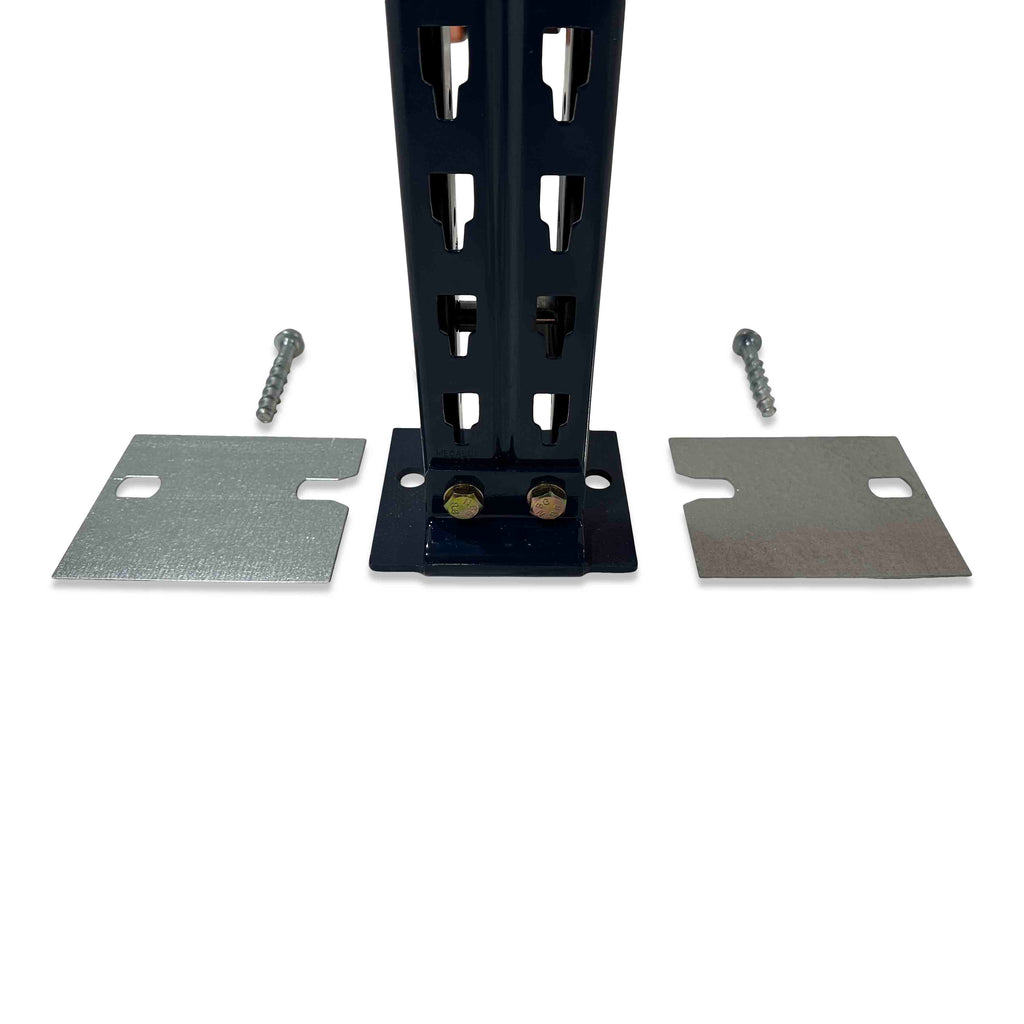

- Floor fixings and steel leveling plates are provided

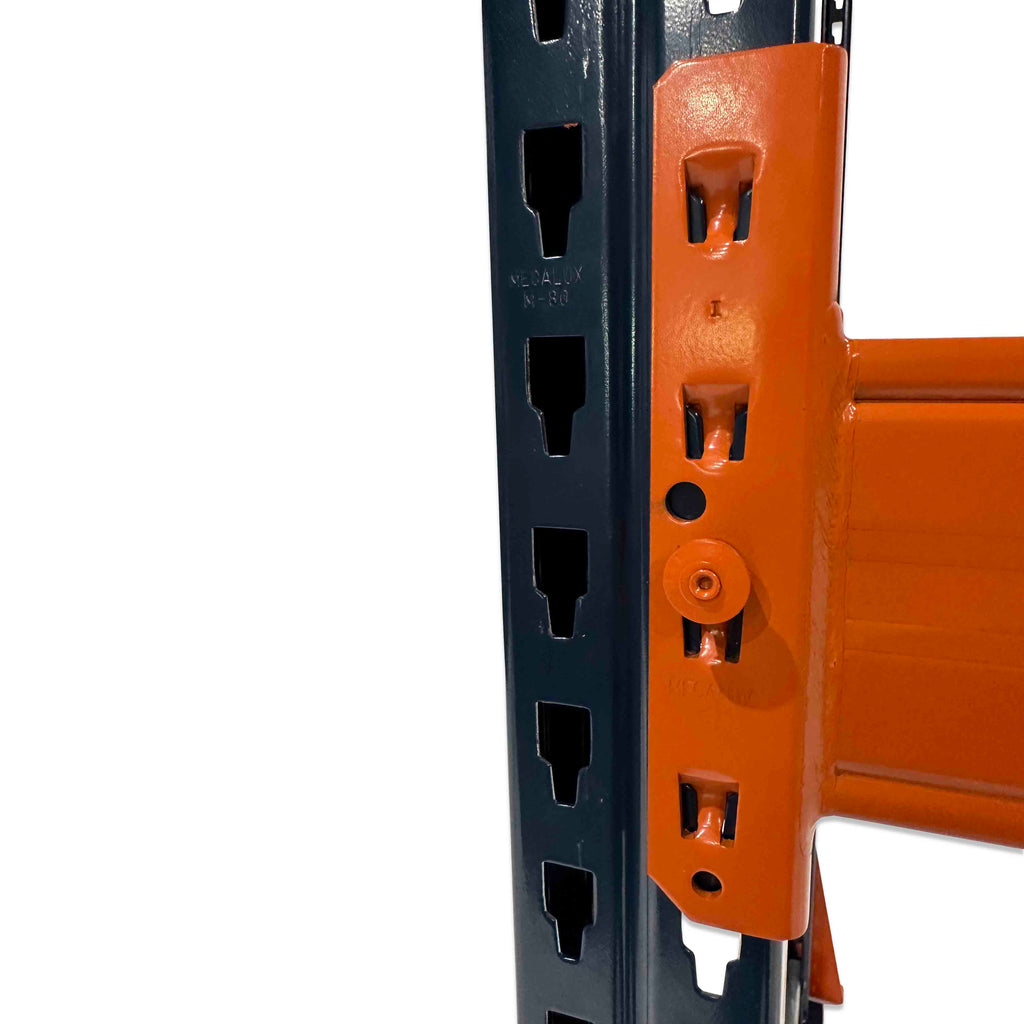

- 2x safety locking pins per beam for extra security and to prevent dislodging
- Powder coated orange finish on the front/back beams
- Load capacity of up to 3300kg UDL per level (varies between width of bay)
- Additional levels are available - please contact us if you wish to do so as load capacities may change
- Pallet racking support beams are available separately - provide support to undersized or weaker pallets
- Upright frame leg protectors are available separately
- Pack offers, extension bays and individual component custom builds are available
These bays must not be used as stand-alone single bays. All load capacities stated above are based on the exact configuration offered. If you are planning on adding or removing levels please contact us directly as this will change the configuration meaning the load capacities stated will not be accurate and therefore, not safe for use. Additionally, the level height should be built to the same height stated in the specification table as this will also affect the load capacity of the pallet racking. Please email sales@tufferman.co.uk or call 0203 764 9380 for any assistance.
UDL (Uniformly Distributed Load) - The load capacities stated are the maximum weights each level can hold. This weight needs to be evenly distributed across each level.
Mecalux Pallet Racking is tested to TUV European standards and is compliant with FEM standards meeting all applicable safety regulations. This racking is the most effective solution for organising and storing your pallets efficiently - maximizing the space available.
Pallet Racking is for industrial use and is designed for storing heavy loads. Therefore, it is important that the racking is bolted down to a well structured, level ground before use. Please use professionally qualified installers (SIERS qualification is recommended).
Ideal Uses:
- Industrial Environment
- Warehouses
- Heavy Duty Storage
Dimensions Guide
| Code | Frame Height (mm) | Depth (mm) | Beam Width (mm) | External 2 Bay Width (mm) | Clear Entry per Bay (mm) | Height between beams (mm) |
Levels Per Bay - Excluding floor level |
|---|---|---|---|---|---|---|---|
|
APAE |
2500 | 900 | 1350 | 2940 | 1350 | 1000 | 2 |
|
APAF |
2500 | 900 | 2700 |
5640 | 2700 |
1000 | 2 |
|
APAG |
2500 | 900 | 2700XL |
5640 |
2700 |
1000 | 2 |
|
APAH |
2500 | 900 | 3300 |
6840 |
3300 |
1000 | 2 |
| APAI |
2500 | 900 | 3300XL | 6840 |
3300 |
1000 | 2 |
| APAJ |
3000 | 900 | 1350 |
2940 |
1350 |
1250 | 2 |
| APAK |
3000 | 900 | 2700 | 5640 |
2700 |
1250 | 2 |
| APAL |
3000 | 900 | 2700XL |
5640 |
2700 |
1250 | 2 |
| APAM | 3000 | 900 | 3300 |
6840 |
3300 |
1250 | 2 |
| APAN | 3000 | 900 | 3300XL |
6840 |
3300 |
1250 | 2 |
| APAO | 3500 | 900 | 1350 | 2940 |
1350 |
1500 | 2 |
| APAP | 3500 | 900 | 2700 |
5640 |
2700 |
1500 | 2 |
| APAQ | 3500 | 900 | 2700XL |
5640 |
2700 |
1500 | 2 |
| APAR | 3500 | 900 | 3300 |
6840 |
3300 |
1500 | 2 |
| APAS | 3500 | 900 | 3300XL | 6840 |
3300 | 1500 | 2 |
| APAT | 4000 | 900 | 1350 | 2940 | 1350 | 1750 | 2 |
| APAU | 4000 | 900 | 2700 | 5640 | 2700 | 1750 | 2 |
| APAV | 4000 | 900 | 2700XL | 5640 | 2700 | 1750 | 2 |
| APAW | 4000 | 900 | 3300 | 6840 | 3300 | 1750 | 2 |
| APAX | 4000 | 900 | 3300XL | 6840 | 3300 | 1750 | 2 |
| APAY | 4000 | 900 | 1350 | 2940 | 1350 | 1150 | 3 |
| APAZ | 4000 | 900 | 2700 | 5640 | 2700 | 1150 | 3 |
| APBA | 4000 | 900 | 2700XL | 5640 | 2700 | 1150 | 3 |
| APBB | 4000 | 900 | 3300 | 6840 | 3300 | 1150 | 3 |
| APBC | 4000 | 900 | 3300XL | 6840 | 3300 | 1150 | 3 |
| APBD | 4500 | 900 | 1350 | 2940 | 1350 | 1350 | 3 |
| APBE | 4500 | 900 | 2700 | 5640 | 2700 | 1350 | 3 |
| APBF | 4500 | 900 | 2700XL | 5640 | 2700 | 1350 | 3 |
| APBG | 4500 | 900 | 3300 | 6840 | 3300 | 1350 | 3 |
| APBH | 4500 | 900 | 3300XL | 6840 | 3300 | 1350 | 3 |
| APBI | 5000 | 900 | 1350 | 2940 | 1350 | 1500 | 3 |
| APBJ | 5000 | 900 | 2700 | 5640 | 2700 | 1500 | 3 |
| APBK | 5000 | 900 | 2700XL | 5640 | 2700 | 1500 | 3 |
| APBL | 5000 | 900 | 3300 | 6840 | 3300 | 1500 | 3 |
| APBM | 5000 | 900 | 3300XL | 6840 | 3300 | 1500 | 3 |
| APBN | 6000 | 900 | 1350 | 2940 | 1350 | 1350 | 4 |
| APBO | 6000 | 900 | 2700 | 5640 | 2700 | 1350 | 4 |
| APBP | 6000 | 900 | 2700XL | 5640 | 2700 | 1350 | 4 |
| APBQ | 6000 | 900 | 3300 | 6840 | 3300 | 1350 | 4 |
| APBR | 6000 | 900 | 3300XL | 6840 | 3300 | 1350 | 4 |
| Code | Number of Pallet Spaces |
Pallet Dimensions (mm) |
Max. Load Per Pallet |
Max Load Per Level |
Max. Load Per Frame |
|---|---|---|---|---|---|
| APAE | 6 | 800h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
|
APAF |
12 | 800h x 1000w x 1200d |
1100kg | 2200kg | 9000kg |
|
APAG |
12 | 750h x 1000w x 1200d | 1700kg | 3400kg | 9000kg |
|
APAH |
12 | 800h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APAI |
12 | 750h x 1000w x 1200d |
1600kg | 3200kg | 9000kg |
| APAJ |
6 | 1050h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APAK |
12 | 1050h x 1000w x 1200d | 1100kg | 2200kg | 9000kg |
| APAL |
12 | 1000h x 1000w x 1200d | 1750kg | 3500kg | 9000kg |
| APAM | 12 | 1050h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APAN | 12 | 1000h x 1000w x 1200d | 1650kg | 3300kg | 9000kg |
| APAO | 6 | 1300h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APAP | 12 | 1300h x 1000w x 1200d | 1100kg | 2200kg | 9000kg |
| APAQ | 12 | 1250h x 1000w x 1200d | 1750kg | 3500kg | 9000kg |
| APAR | 12 | 1300h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APAS | 12 | 1250h x 1000w x 1200d | 1650kg | 3300kg | 9000kg |
| APAT | 6 | 1550h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APAU | 12 | 1550h x 1000w x 1200d | 1050kg | 2100kg | 9000kg |
| APAV | 12 | 1500h x 1000w x 1200d | 1700kg | 3400kg | 9000kg |
| APAW | 12 | 1550h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APAX | 12 | 1500h x 1000w x 1200d | 1650kg | 3300kg | 9000kg |
| APAY | 8 | 950h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APAZ | 16 | 950h x 1000w x 1200d | 1100kg | 2200kg | 9000kg |
| APBA | 16 | 900h x 1000w x 1200d | 1300kg | 2600kg | 9000kg |
| APBB | 16 | 950h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APBC | 16 | 900h x 1000w x 1200d | 1200kg | 2400kg | 9000kg |
| APBD | 8 | 1150h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APBE | 16 | 1150h x 1000w x 1200d | 1050kg | 2100kg | 9000kg |
| APBF | 16 | 1100h x 1000w x 1200d | 1250kg | 2500kg | 9000kg |
| APBG | 16 | 1150h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APBH | 16 | 1100h x 1000w x 1200d | 1150kg | 2300kg | 9000kg |
| APBI | 8 | 1300h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APBJ | 16 | 1300h x 1000w x 1200d | 1050kg | 2100kg | 9000kg |
| APBK | 16 | 1250h x 1000w x 1200d | 1250kg | 2500kg | 9000kg |
| APBL | 16 | 1300h x 1000w x 1200d | 850kg | 1700kg | 9000kg |
| APBM | 16 | 1250h x 1000w x 1200d | 1150kg | 2300kg | 9000kg |
| APBN | 10 | 1150h x 1000w x 1200d | 1700kg | 1700kg | 9000kg |
| APBO | 20 | 1150h x 1000w x 1200d | 950kg | 1900kg | 9000kg |
| APBP | 20 | 1100h x 1000w x 1200d | 1000kg | 2000kg | 9000kg |
| APBQ | 20 | 1150h x 1000w x 1200d | 800kg | 1600kg | 9000kg |
| APBR | 20 | 1100h x 1000w x 1200d | 900kg | 1800kg | 9000kg |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK | VIDEO LINK |
|---|---|---|---|
| Pallet Racking | Assembly Instructions - Pallet Racking | DOWNLOAD | |
| Pallet Racking | Guide - Pallet Racking | DOWNLOAD |
Order before 3pm for next day delivery or choose a convenient delivery day at checkout, up to 3 months in advance. We deliver Monday-Friday (excluding bank holidays).
UK Mainland Delivery Charges:
|
Order Value (Ex. VAT) |
Standard Delivery (within 4 working days) |
Next / Specified Day
|
|---|---|---|
| £0 - £9.99 | £7.99 | £12.98 |
| Over £10.00 | £14.99 | £19.98 |
Please Note:
For standard deliveries couriers are contacted to deliver to the door and will not enter your property.
All pallet deliveries are kerbside and the driver will not unload the goods from the pallet or take the pallet away.
If a large order that requires palletisation is placed after 12pm it may be subject to a 24 hour delay due to processing times.
Non-UK Mainland Delivery Charges
The following postcode ranges are classified as non-UK mainland by our couriers: AB, IV, KW, PA, PH, IM, ZE, DD and BT. (Unfortunately, we are unable to deliver to Jersey or Guernsey at this time).
|
Order Value (Ex. VAT) |
Standard Delivery (2-3 Working Days) |
|---|---|
| £0 - £49.99 | £17.99 |
| £50 - £99.99 | £44.99 |
| £100 - £199.99 | £64.99 |
| £200 - £399.99 | £64.99 |
| £400 - £999.99 | £74.99 |
| £1000 + | £94.99 |
Please ensure that you check the contents of your order upon delivery. Any missing or damaged items must be reported to sales@tufferman.co.uk within 7 days of the order being placed. Photos of any damaged items will be required.
Returns
In the unlikely event that you receive a damaged or faulty product, we will collect the item and either replace the item for you or refund you in full. In some cases, we may ask our customers to return the item to us but we will of course refund any extra postage costs to you.
Customers are welcome to return unwanted items to us within 28 working days, providing they are unused and in their original packaging. However please note that customers are responsible for the return costs of unwanted items
Please send returns to the address below.
Tufferman Ltd
Returns Department
Unit 2A Boyton Hall Farm,
Boyton Cross
Roxwell
Chelmsford
CM1 4LN
Items You May Need
Why Buy From Tufferman
Recently viewed
Customers Who Use Our Products
- Opens in a new window.
