STORALEX

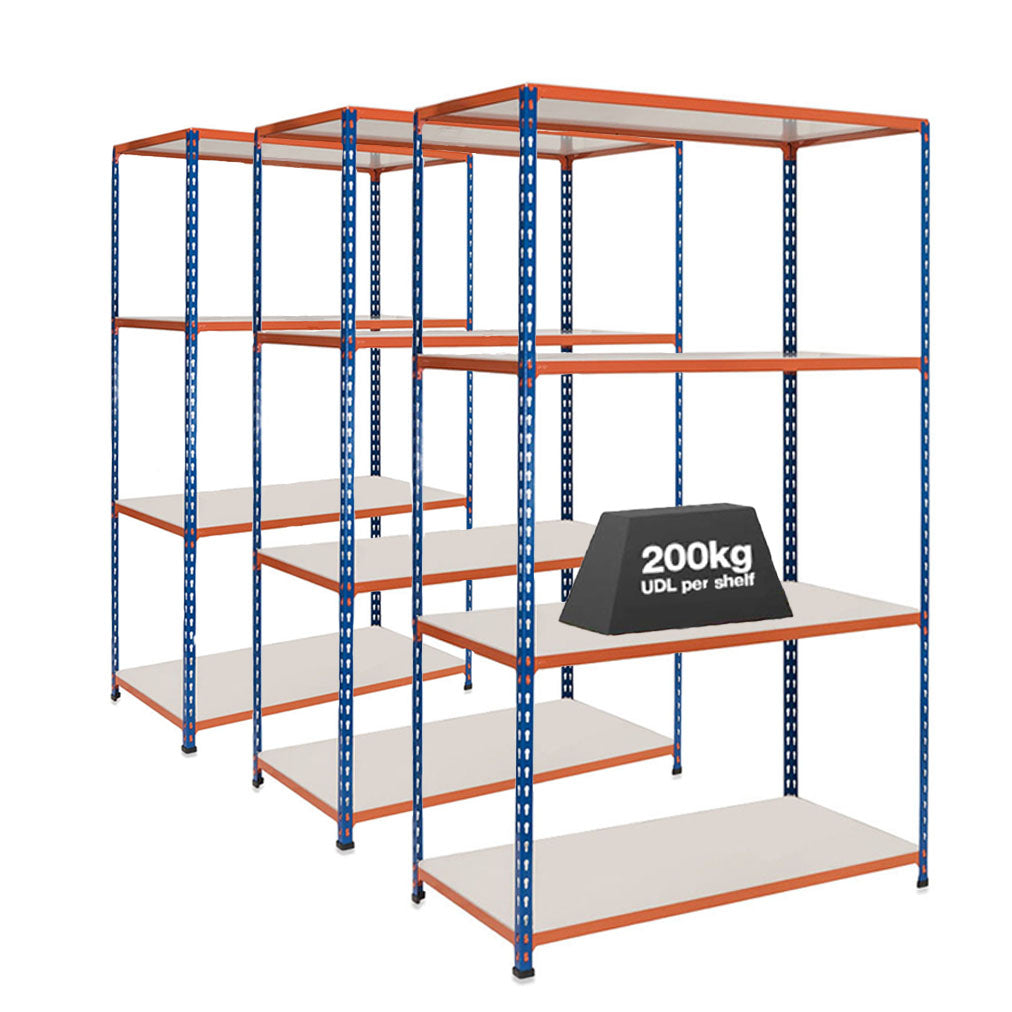

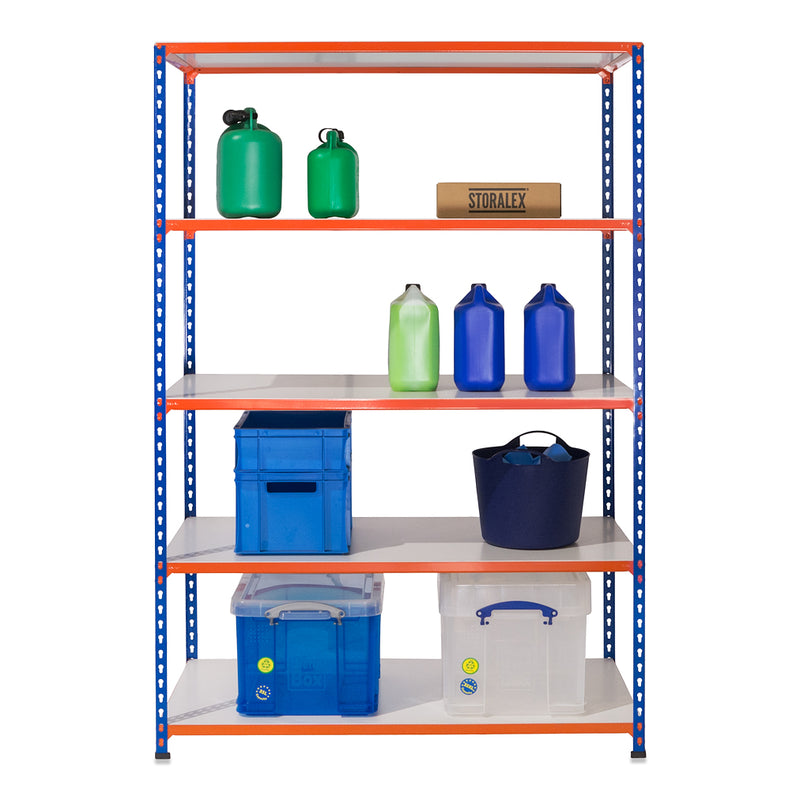

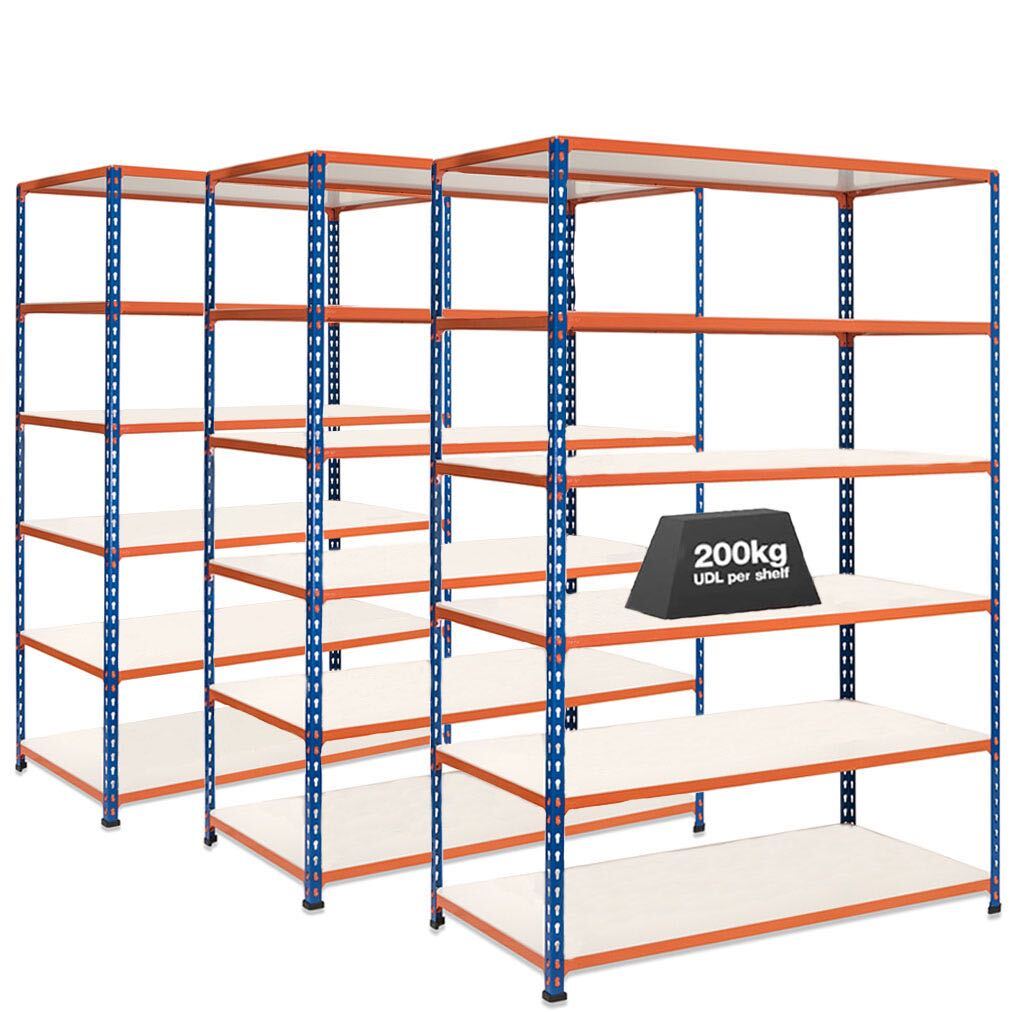

3x SX200 Industrial Shelving - 2440mm High - 200kg - Melamine - Blue & Orange

Save £67.20
55 reviews

Key Features:

  • Up to 200kg per shelf, 1,200 per bay (UDL)
  • Flush fitting 15mm wipe clean melamine decks
  • Adjustable shelf height every 3.8cm
Height (mm):
1830
2440
Shelf Type:
Number of Bays:
Colour:
Width (mm): 610
Depth (mm): 305
Levels: 4
Load Per Shelf (UDL):
200kg
WAS £333.59 FROM ONLY Price £266.39 INC VAT
FROM ONLY WAS £277.99 Price £221.99 EX VAT
PRICE PROMISE
VIEW OPTIONS

Code: AFVQ

Key Features of SX200 Industrial Shelving


  • 15mm thick melamine chipboard shelves, tested to 200kg UDL per shelf (915mm wide)
  • Total load capacity of up to 1,200kg UDL per bay
  • 4/5/6 x melamine shelves as standard with each bay
  • Purchase additional shelves to suit storage requirements
  • Single piece uprights with durable powder coated finish

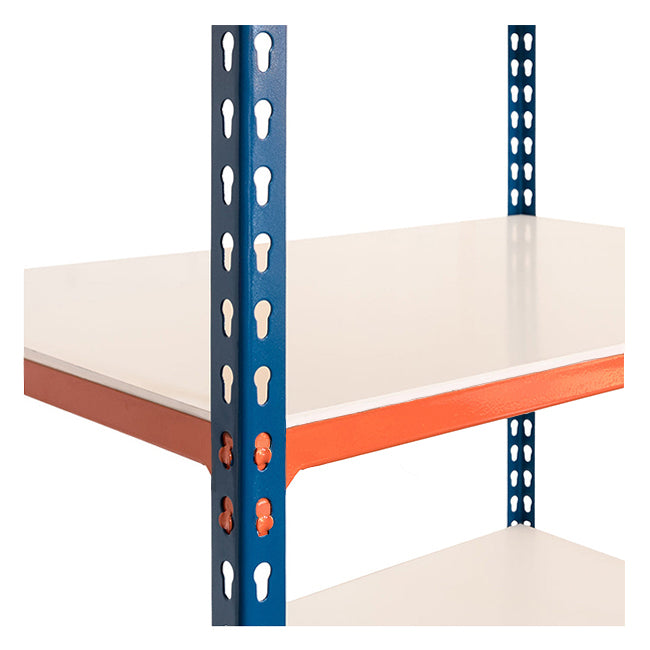

  • Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
  • Suitable for daily use within a commercial/industrial environment
  • Low profile shelf beam design maximises storage space
  • Quick & easy construction, assembly mallet provided with each order
  • Full range of accessories such as joining tie plates available
  • Adjustable shelf height every 3.8cm (1.5 Inches)
  • Accessible from both sides, no back cross bracing needed
  • Free Rubber Assembly Mallet!


Ideal Uses:


  • Regular Picking
  • Archive & document storage
  • Small parts storage
  • Light boxes
  • Domestic items


Product Overview


The Storalex SX200 range of medium-duty industrial shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.

This light industrial range is perfect for businesses storing items in stockrooms, storerooms or heavy duty domestic applications such as garages or workshops. Each shelf can support 200kg UDL*, however If you need to increase the shelf weight capacity the SX340 range is a heavier duty version of this product.

Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested these commercial grade units also comply with all relevant ISO manufacturing quality requirements.

SX200 Industrial Shelving Guide

SX200 Industrial Shelving Guide

Fitting Guide For SX200 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data

610w

915w

1220w

1525w

Upright One Piece One Piece One Piece One Piece
Shelf Adjustment (mm)
38.1 38.1 38.1 38.1
Clear Entry (mm)
546 851 1156 1461
First Bay External (mm) 620 925 1230 1535
Additional Bay External (mm) 627 932 1237 1542
Total Bay Capacity 1830h mm 1200kg 1200kg 1200kg 1200kg
Total Bay Capacity 2440h mm 1000kg 1000kg 1000kg 1000kg
Upright Steel Thickness (mm) 1.5 1.5 1.5 1.5
Beam Steel Thickness (mm) 1.5 1.5 1.5 1.5
Chipboard Thickness (mm) 15 15 15 15
Melamine Thickness (mm) 15 15 15 15
Steel Thickness (mm) 0.8 0.8 0.8 0.8
Height of Shelf (mm) 30 30 30 30

PRODUCT CATEGORY PRODUCT DESCRIPTION DOWNLOAD LINK
Industrial Shelving & Racking Assembly Instructions - Storalex SX200 & SX340 - Industrial Shelving DOWNLOAD
