STORALEX

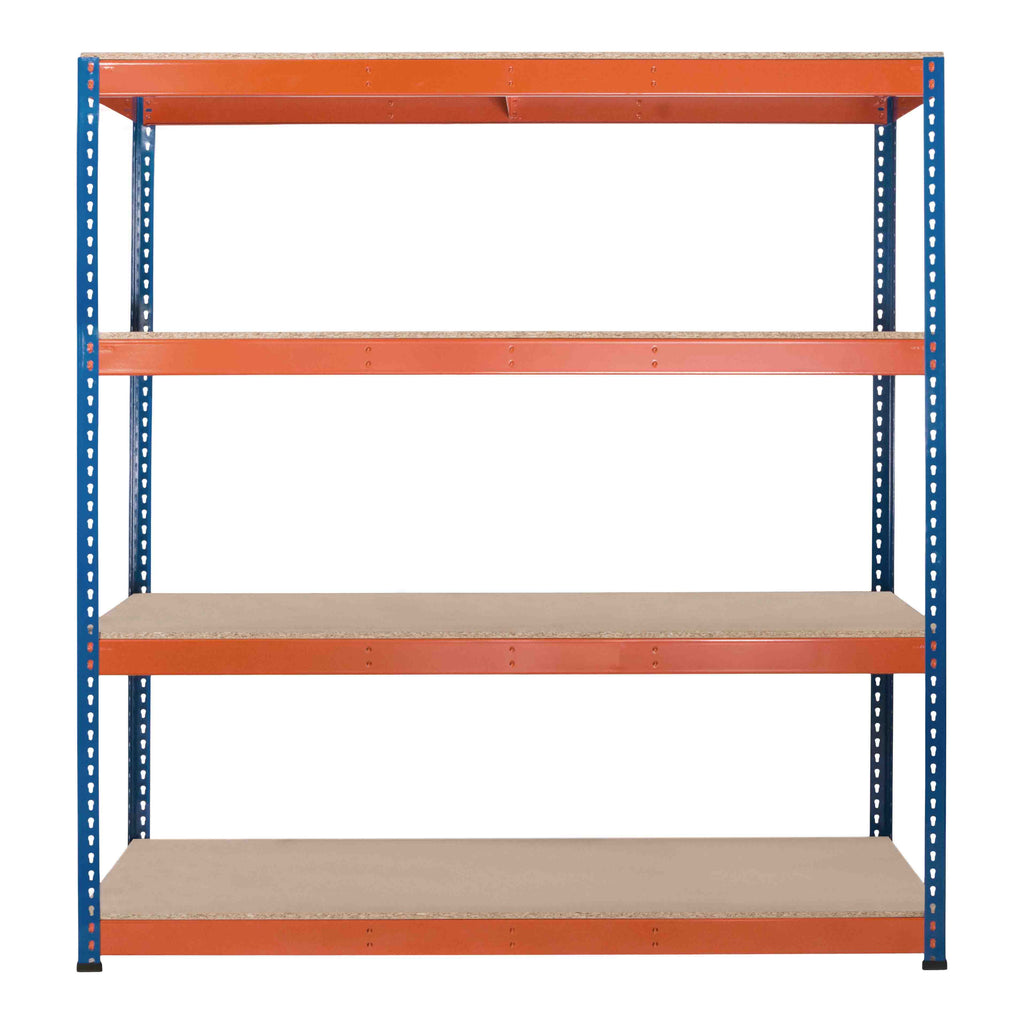

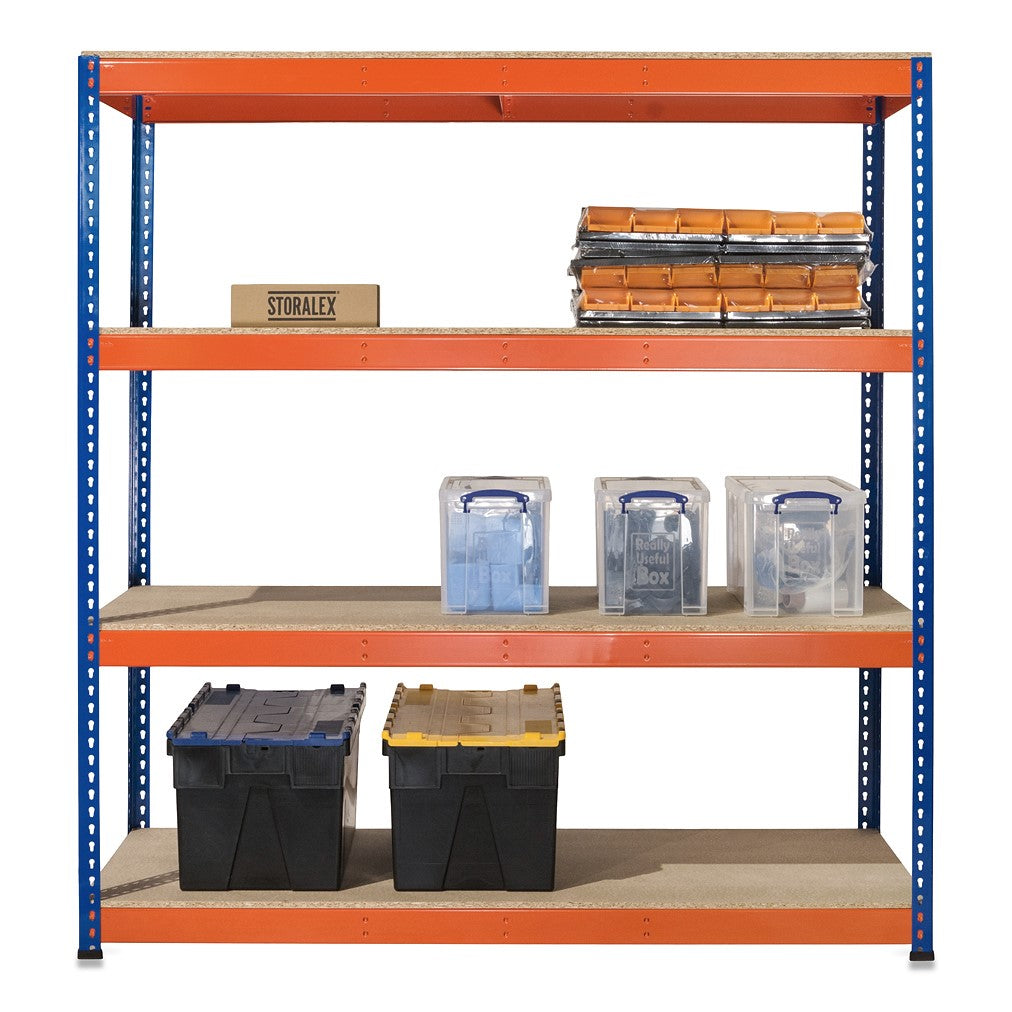

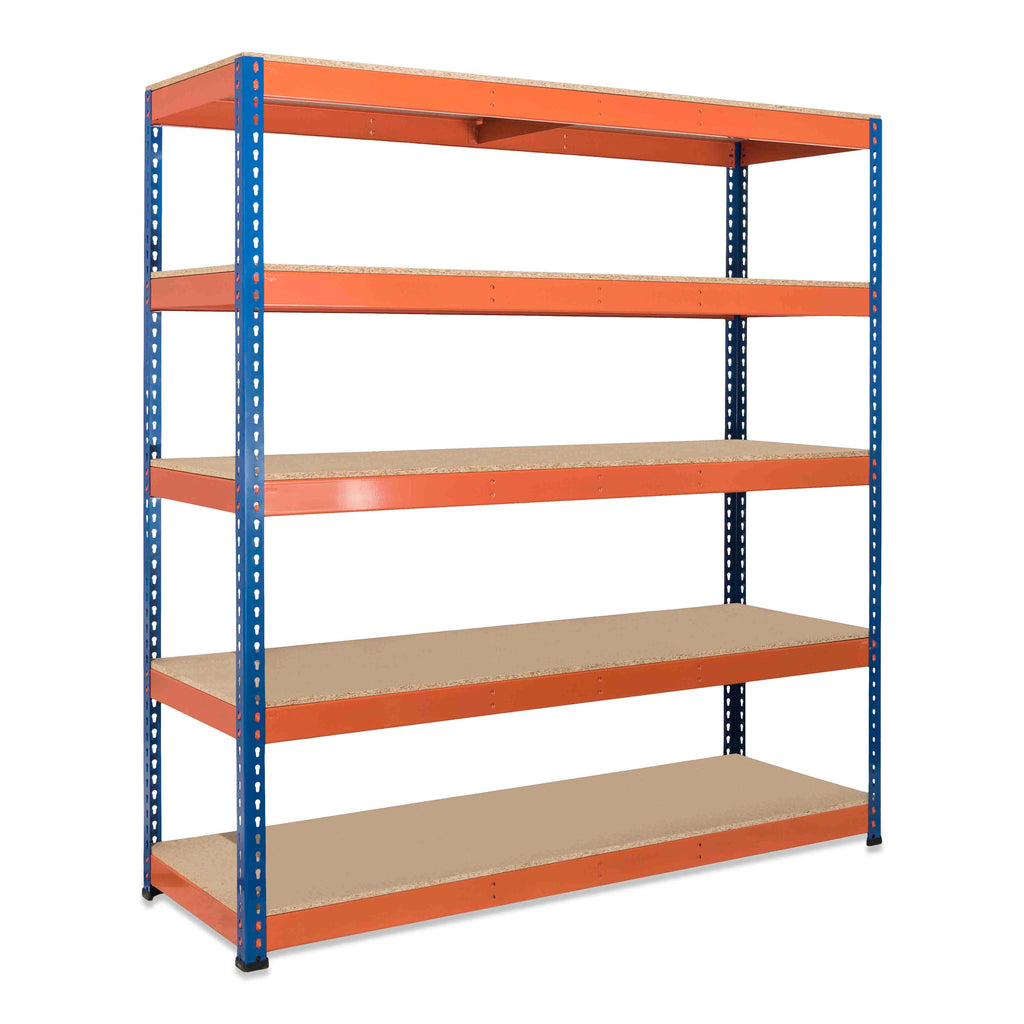

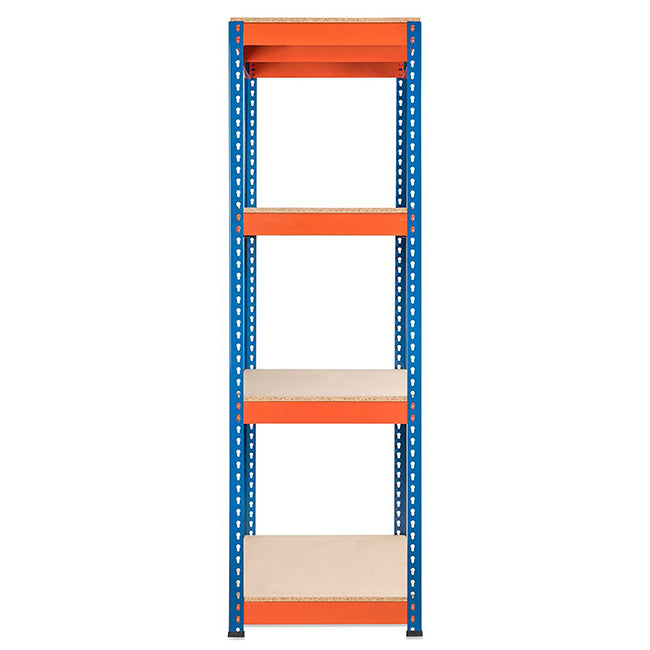

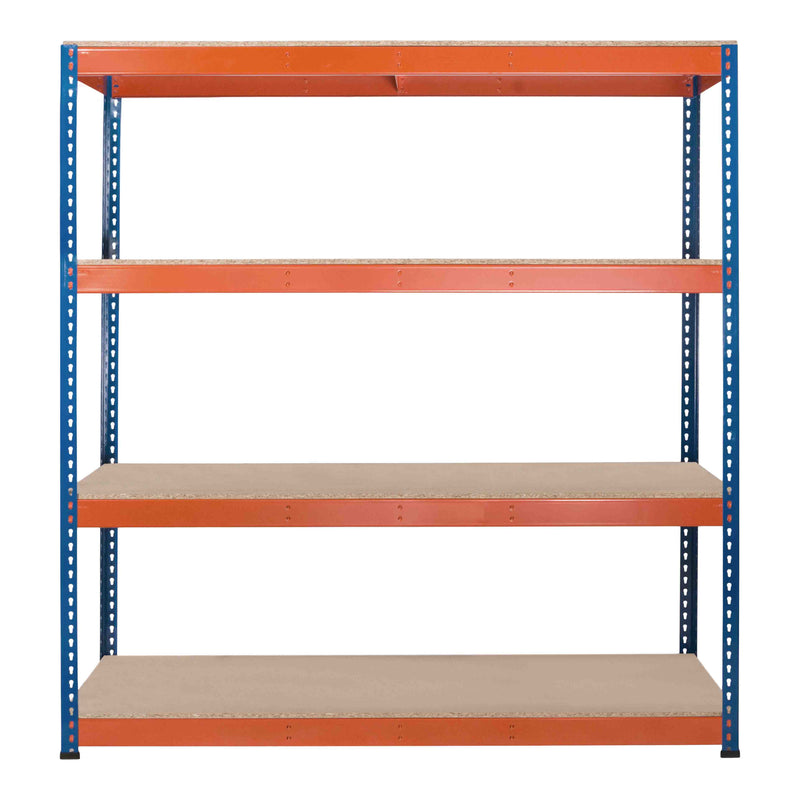

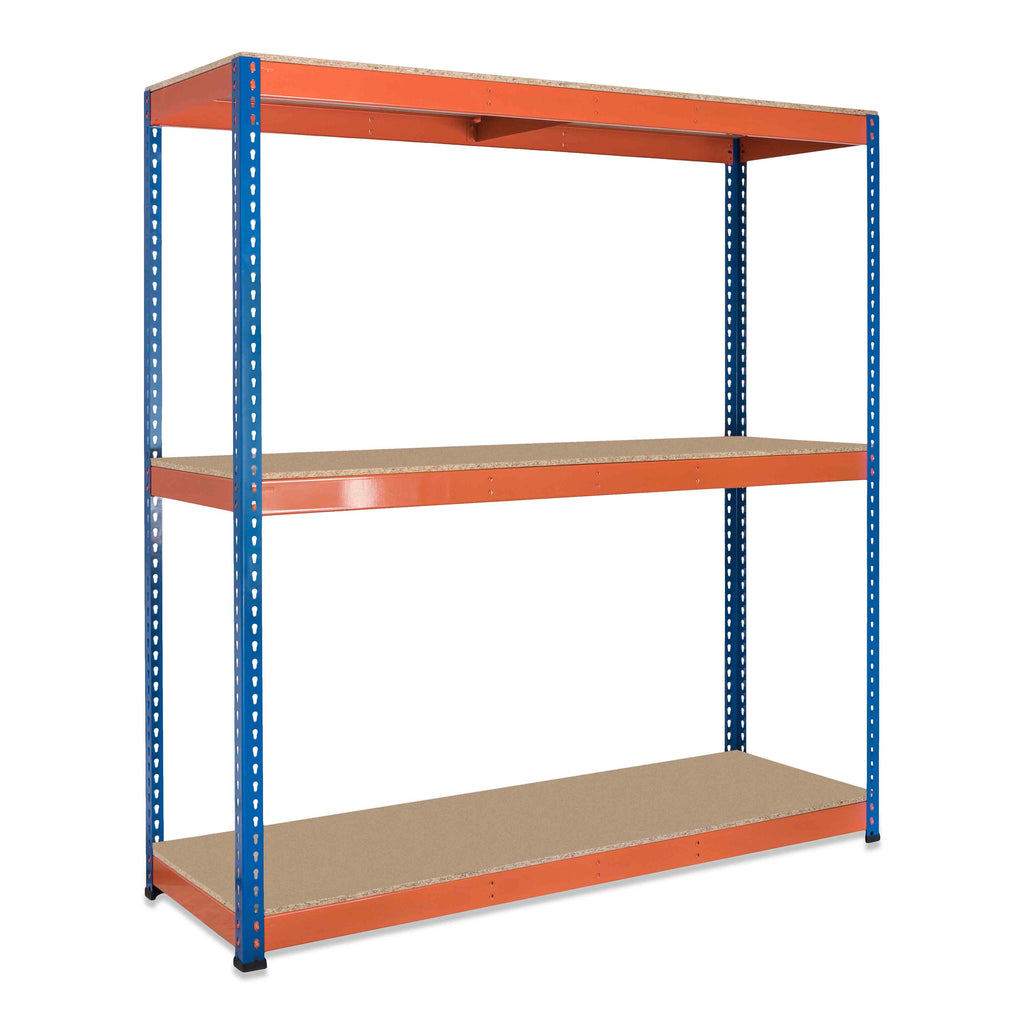

4x SX800 Industrial Shelving - 3050mm High - 800kg - Chipboard - Blue & Orange

Save £258.00
6 reviews

Key Features:

  • Up to 800kg per shelf, 4,000 per bay (UDL)
  • Tough 15mm chipboard decks
  • Adjustable shelf height every 3.8cm
Height (mm):
Shelf Type:
Number of Bays:
Colour:
Width (mm): 1525
Depth (mm): 455
Levels: 3
Load Per Shelf (UDL):
800kg
WAS £1,286.39 FROM ONLY
Price £1,028.39 INC VAT
FROM ONLY WAS £1,071.99
Price £856.99 EX VAT
PRICE PROMISE
VIEW OPTIONS

Code: AEPF

Key Features of SX800 Industrial Shelving


  • 15mm thick chipboard shelves, tested up to 800kg UDL per shelf
  • Total load capacity of up to 4,000kg UDL per bay
  • 3/4/5 x chipboard shelves as standard with each bay (2440w have two pieces of chipboard per level)
  • Purchase additional shelves to suit storage requirements
  • Single piece uprights with durable powder coated finish

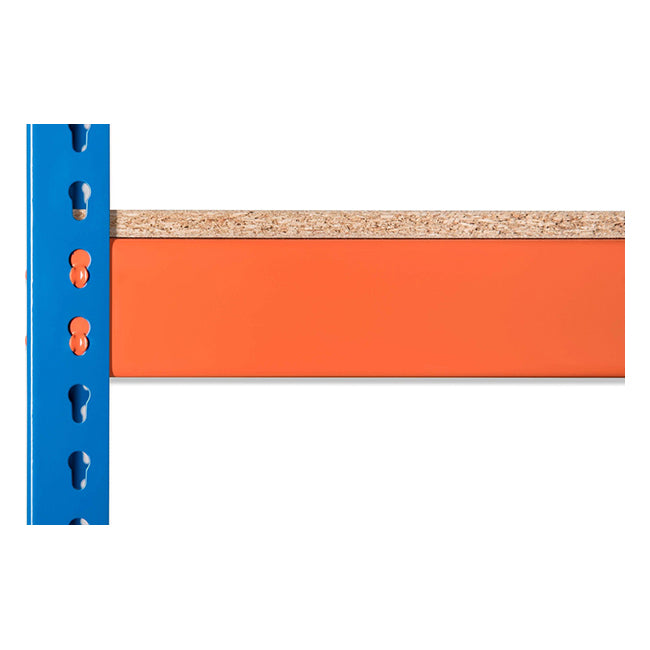

  • Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
  • Suitable for daily use within a commercial/industrial environment

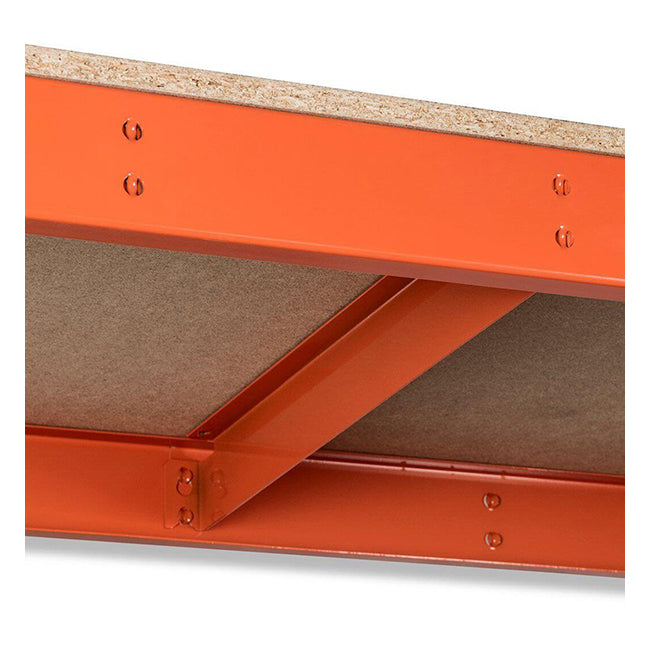

  • Low profile shelf beam design maximises storage space
  • Quick & easy construction, assembly mallet provided with each order
  • Full range of accessories such as joining tie plates available
  • Adjustable shelf height every 3.8cm (1.5 Inches)
  • Accessible from both sides, no back cross bracing needed
  • Free Rubber Assembly Mallet!


Ideal Uses:


  • Regular Picking
  • Archive & document storage
  • Small parts storage
  • Light boxes
  • Domestic items


Product Overview


The Storalex SX800 is the ‘heavy weight’ of the industrial shelving range, capable of holding up to 800kg UDL per shelf and a whopping 4,000kg per bay. Designed for safely storing incredibly heavy and bulky loads within demanding commercial environments. UK Businesses have relied on the tried and tested ‘stud and keyhole’ design for over 25 years. For 24/7 environments such as warehouses and factories where safety and practicality is paramount, the SX800 is an incredibly robust and sturdy shelving system designed to cope with around the clock intensive use. Rigorously tested to strict FEM (European Federation of Material Handling) standards these units also comply with ISO 9001 quality requirements.



SX800 Industrial Shelving Guide



SX400 Industrial Shelving Guide

Fitting Guide For SX800 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data

1220w

1525w

1830w

2440w
Upright one piece one piece one piece one piece
Shelf Adjustment (mm)
38.1 38.1 38.1 38.1
Clear Entry (mm)
1135 1440 1745 2355
First Bay External (mm) 1232 1537 1842 2452
Additional Bay External (mm) 1239 1544 1849 2459
Total Bay Capacity 1980h 3200kg 3200kg 3200kg 3200kg
Total Bay Capacity 2440h 2800kg 2800kg 2800kg 2800kg
Total Bay Capacity 3050h 2500kg 2500kg 2500kg 2500kg
Upright Steel Thickness (mm) 2
2
2
2
Beam Steel Thickness (mm) 2
2
2
2
Chipboard Thickness (mm) 15 15 15 15
Melamine Thickness (mm) 15 15 15 15
Steel Thickness (mm) 0.8 0.8 0.8 0.8
Height of Shelf (mm) 94
94
94
94
PRODUCT CATEGORY PRODUCT DESCRIPTION DOWNLOAD LINK
Industrial Shelving & Racking Assembly Instructions - Storalex SX400 & SX800 - Industrial Shelving DOWNLOAD
