MECALUX

1x Mecalux Heavy Duty Longspan Shelving - 2500mm High - Blue & Orange

No reviews

Key Features:

  • Up to 850kg per level (UDL) - width and depths vary
  • Ideal for storing bulky, heavy duty loads
  • Wide variety of sizes available to suit your requirements
Height:
Shelf Type:
Chipboard
Number of Bays:
Colour:
Width (mm): 1200
Depth (mm): 600
Levels: 3
Load Per Shelf (UDL):
590kg
FROM ONLY WAS £289.99 EX.VAT
PRICE PROMISE
VIEW OPTIONS

Code: APJA

Code Description Dimensions (mm) Levels Load Per Shelf (UDL) Price Quantity
APIZ 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1000 x 600 3 610kg £274.99

Not enough in stock. Only 0 instock!

APLK 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1000 x 900 3 300kg £299.99

Not enough in stock. Only 0 instock!

APJA 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1200 x 600 3 590kg £289.99

Not enough in stock. Only 8 instock!

APLL 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1200 x 900 3 300kg £339.99

Not enough in stock. Only 8 instock!

APJB 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1400 x 600 3 500kg £309.99

Not enough in stock. Only 30 instock!

APLM 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1400 x 900 3 320kg £349.99

Not enough in stock. Only 26 instock!

APJC 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1825 x 600 3 850kg £359.99

Not enough in stock. Only 30 instock!

APLN 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1825 x 900 3 440kg £394.99

Not enough in stock. Only 27 instock!

APJD 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1900 x 600 3 810kg £365.99

Not enough in stock. Only 16 instock!

APLO 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 1900 x 900 3 440kg £404.99

Not enough in stock. Only 16 instock!

APJE 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 2300 x 600 3 670kg £414.99

Not enough in stock. Only 12 instock!

APLP 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 2300 x 900 3 500kg £459.99

Not enough in stock. Only 12 instock!

APJF 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 2700 x 600 3 550kg £454.99

Not enough in stock. Only 13 instock!

APLQ 1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange 2500 x 2700 x 900 3 550kg £539.99

Not enough in stock. Only 13 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1000 x 600

Levels: 3

Load Per Shelf (UDL): 610kg

Code: APIZ

£274.99

Not enough in stock. Only 0 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1000 x 900

Levels: 3

Load Per Shelf (UDL): 300kg

Code: APLK

£299.99

Not enough in stock. Only 0 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1200 x 600

Levels: 3

Load Per Shelf (UDL): 590kg

Code: APJA

£289.99

Not enough in stock. Only 8 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1200 x 900

Levels: 3

Load Per Shelf (UDL): 300kg

Code: APLL

£339.99

Not enough in stock. Only 8 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1400 x 600

Levels: 3

Load Per Shelf (UDL): 500kg

Code: APJB

£309.99

Not enough in stock. Only 30 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1400 x 900

Levels: 3

Load Per Shelf (UDL): 320kg

Code: APLM

£349.99

Not enough in stock. Only 26 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1825 x 600

Levels: 3

Load Per Shelf (UDL): 850kg

Code: APJC

£359.99

Not enough in stock. Only 30 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1825 x 900

Levels: 3

Load Per Shelf (UDL): 440kg

Code: APLN

£394.99

Not enough in stock. Only 27 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1900 x 600

Levels: 3

Load Per Shelf (UDL): 810kg

Code: APJD

£365.99

Not enough in stock. Only 16 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 1900 x 900

Levels: 3

Load Per Shelf (UDL): 440kg

Code: APLO

£404.99

Not enough in stock. Only 16 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 2300 x 600

Levels: 3

Load Per Shelf (UDL): 670kg

Code: APJE

£414.99

Not enough in stock. Only 12 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 2300 x 900

Levels: 3

Load Per Shelf (UDL): 500kg

Code: APLP

£459.99

Not enough in stock. Only 12 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 2700 x 600

Levels: 3

Load Per Shelf (UDL): 550kg

Code: APJF

£454.99

Not enough in stock. Only 13 instock!

1x Mecalux Heavy Duty Longspan Shelving - Blue & Orange

2500 x 2700 x 900

Levels: 3

Load Per Shelf (UDL): 550kg

Code: APLQ

£539.99

Not enough in stock. Only 13 instock!

Key Features of Mecalux Longspan Shelving


  • 1x Mecalux Longspan shelving bay 2500mm high
  • Industrial grade steel, Ideal for storing heavy duty, bulky loads
  • Tested to FEM standards
  • 2x frame uprights delivered fully assembled
  • Blue uprights powder coated finish
  • Levels are adjustable in height every 50mm

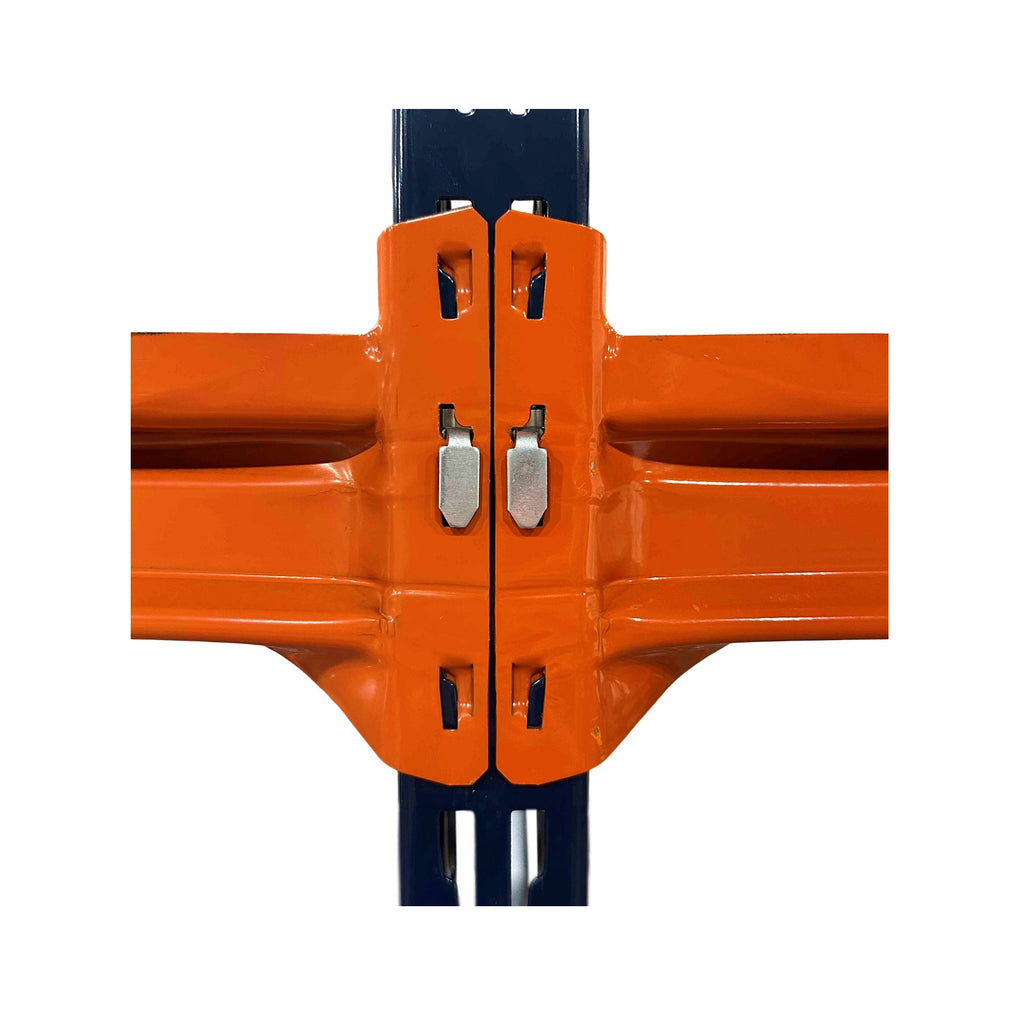

  • 2x safety locking pins per beam for extra security and to prevent dislodging
  • Powder coated orange finish on the beams
  • 3 x chipboard decks, 22mm thickness
  • Up to 850kg load capacities per level for heavy duty storage (varies between the width and depth of the bay)
  • Ground level can be used for pallet storage - no bottom beams required
  • Floor fixings and steel leveling plates are provided
  • Boltless assembly (except when fixing to the floor)
  • Longspan shelving support beams are available for extra reinforcement to levels
  • Extension bays are available - expand your longspan shelving to maximise storage space



UDL (Uniformly Distributed Load) - The load capacities stated are the maximum weights each level can hold. This weight needs to be evenly distributed across each level.



Mecalux Longspan Shelving is one of our most robust shelving units. Perfect for use in an industrial/warehouse environment, these units can be used for a wide range of storage due to their large load capacity. It is constructed using high quality, thick upright frames and beams, once assembled these shelving units are impressively sturdy and reliable. Multiple sizes are available for your storage requirements, choose from up to 2700mm wide units, great for bulkier storage.



Ideal Uses:



  • Industrial Environment
  • Warehouses
  • Heavy Duty Storage



Industrial Shelving Guide



Code Frame Height (mm) Depth (mm) Beam Width (mm) External Bay Width (mm) Clear Entry per Bay (mm)
APIZ 2500 600 1000 1100 990
APJA 2500 600 1200 1300 1190
APJB 2500 600 1400 1500 1390
APJC 2500 600 1825 1925 1815
APJD 2500 600 1900 2000 1890
APJE 2500 600 2300 2400 2290
APJF 2500 600 2700 2800 2690
APLK 2500 900 1000 1100 990
APLL 2500 900 1200 1300 1190
APLM 2500 900 1400 1500 1390
APLN 2500 900 1825 1925 1815
APLO 2500 900 1900 2000 1890
APLP 2500 900 2300 2400 2290
APLQ 2500 900 2700 2800 2690



Code Levels Shelf Thickness (mm) Chipboard Thickness (mm) Max. Load per Level Total Bay Capacity
APIZ 3 57 22 610kg 4000kg
APJA 3 57 22 590kg 4000kg
APJB 3 57 22 500kg 4000kg
APJC 3 77 22 850kg 4000kg
APJD 3 77 22 810kg 4000kg
APJE 3 77 22 670kg 4000kg
APJF 3 87 22 550kg 4000kg
APLK 3 57 22 300kg 4000kg
APLL 3 57 22 300kg 4000kg
APLM 3 57 22 320kg 4000kg
APLN 3 77 22 440kg 4000kg
APLO 3 77 22 440kg 4000kg
APLP 3 77 22 500kg 4000kg
APLQ 3 87 22 550kg 4000kg



SX400 Industrial Shelving Guide

PRODUCT CATEGORY PRODUCT DESCRIPTION DOWNLOAD LINK
Longspan Shelving Assembly Instructions - Longspan Shelving DOWNLOAD
Longspan Shelving Guide - Longspan Shelving DOWNLOAD
