STORALEX

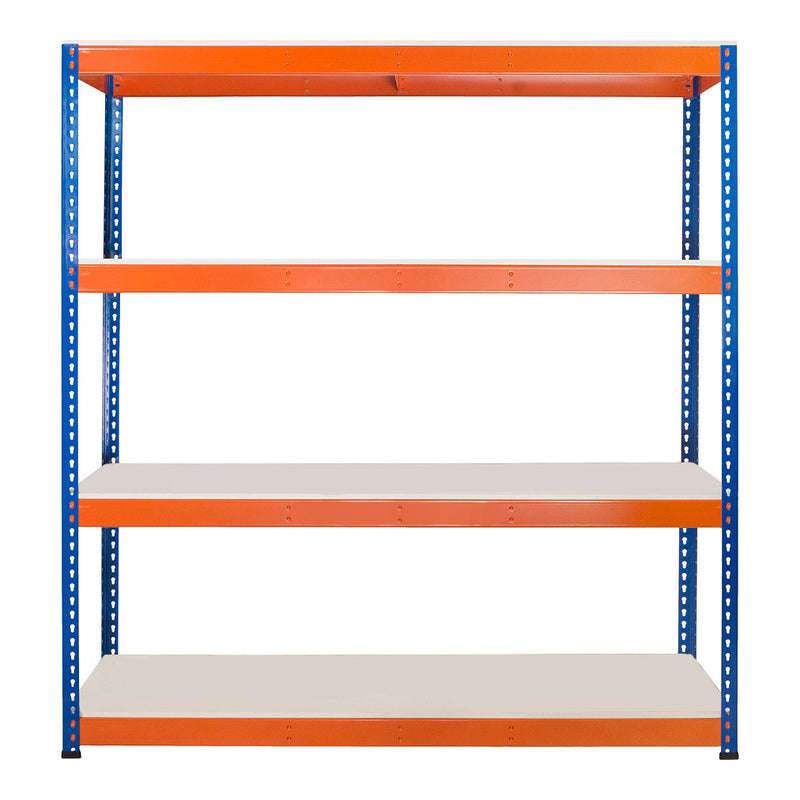

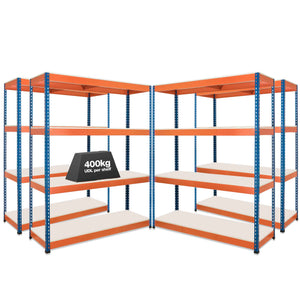

4x SX400 Industrial Shelving - 1980mm High - 400kg - Melamine - Blue & Orange

Save £160.80
35 reviews

Key Features

  • Up to 500kg per shelf, 2,500 per bay (UDL)
  • Tough, wipe clean 15mm melamine decks
  • Adjustable shelf height every 3.8cm
Height (mm):
Shelf Type:
Number of Bays:
Colour:
Width (mm): 1220
Depth (mm): 455
Levels: 3
Load Per Shelf (UDL):
400kg
WAS £801.59 FROM ONLY
Price £640.79 INC VAT
FROM ONLY WAS £667.99
Price £533.99 EX VAT
PRICE PROMISE
VIEW OPTIONS

Code: AGNN

Key Features of SX400 Melamine Industrial Shelving


  • 15mm thick melamine chipboard shelves, tested up to 500kg UDL per shelf
  • Total load capacity of up to 2,500kg UDL per bay

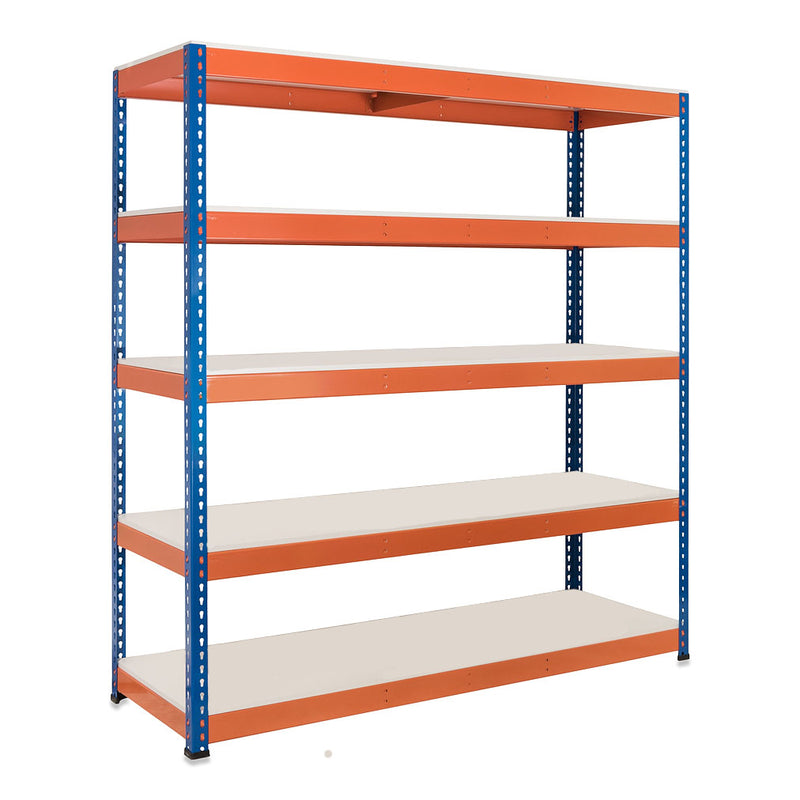

  • 3/4/5 x melamine chipboard shelves as standard with each bay
  • Purchase additional shelves to suit storage requirements
  • Single piece uprights with durable powder coated finish
  • Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
  • Suitable for daily use within a commercial/industrial environment
  • Low profile shelf beam design maximises storage space
  • Quick & easy construction, assembly mallet provided with each order
  • Full range of accessories such as joining tie plates available
  • Adjustable shelf height every 3.8cm (1.5 Inches)
  • Accessible from both sides, no back cross bracing needed
  • Free Rubber Assembly Mallet!


Ideal Uses:


  • Regular Picking
  • Archive & document storage
  • Small parts storage
  • Light boxes
  • Domestic items


Product Overview


The Storalex SX400 range of heavy-duty industrial shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.

This heavy duty industrial shelving range is perfect for industry & businesses storing items in stockrooms, storerooms, factories and warehouses. Each shelf can support 500kg UDL*, however If you need to increase the shelf weight capacity the SX800 range is a heavier duty version of this product.

Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested to FEM (European Federation of Material Handling) standards these commercial grade units also comply with all relevant ISO manufacturing quality requirements.

SX400 Industrial Shelving Guide

SX400 Industrial Shelving Guide

Fitting Guide For SX400 Industrial Shelving Units

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data

1220w

1525w

1830w

2135w

2440w
Upright one piece one piece one piece one piece one piece
Shelf Adjustment (mm)
38.1 38.1 38.1 38.1 38.1
Clear Entry (mm)
1135 1440 1745 2050 2355
First Bay External (mm) 1232 1537 1842 2147 2452
Additional Bay External (mm) 1239 1544 1849 2154 2459
Total Bay Capacity 1677h 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 1980h 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 3050h 1320kg 1320kg 1320kg 1320kg 1320kg
Upright Steel Thickness (mm) 1.5 1.5 1.5 1.5 1.5
Beam Steel Thickness (mm) 1.5 1.5 1.5 1.5 1.5
Chipboard Thickness (mm) 15 15 15 15 15
Melamine Thickness (mm) 15 15 15 15 15
Steel Thickness (mm) 0.8 0.8 0.8 0.8 0.8
Height of Shelf (mm) 94
94
94
94
94
PRODUCT CATEGORY PRODUCT DESCRIPTION DOWNLOAD LINK
Industrial Shelving & Racking Assembly Instructions - Storalex SX400 & SX800 - Industrial Shelving DOWNLOAD
