STORALEX

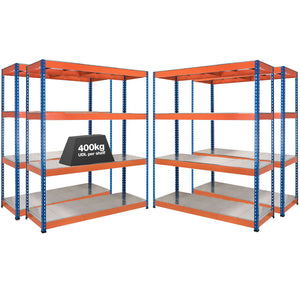

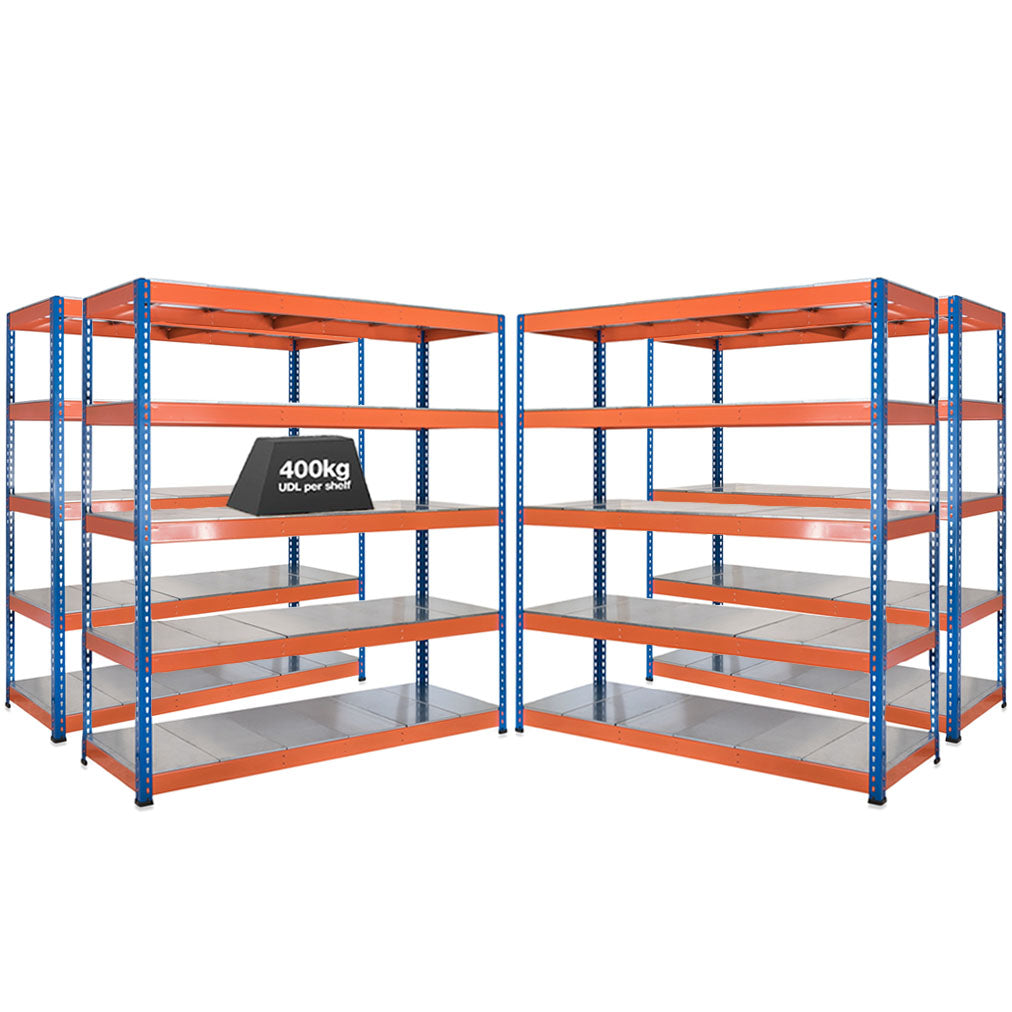

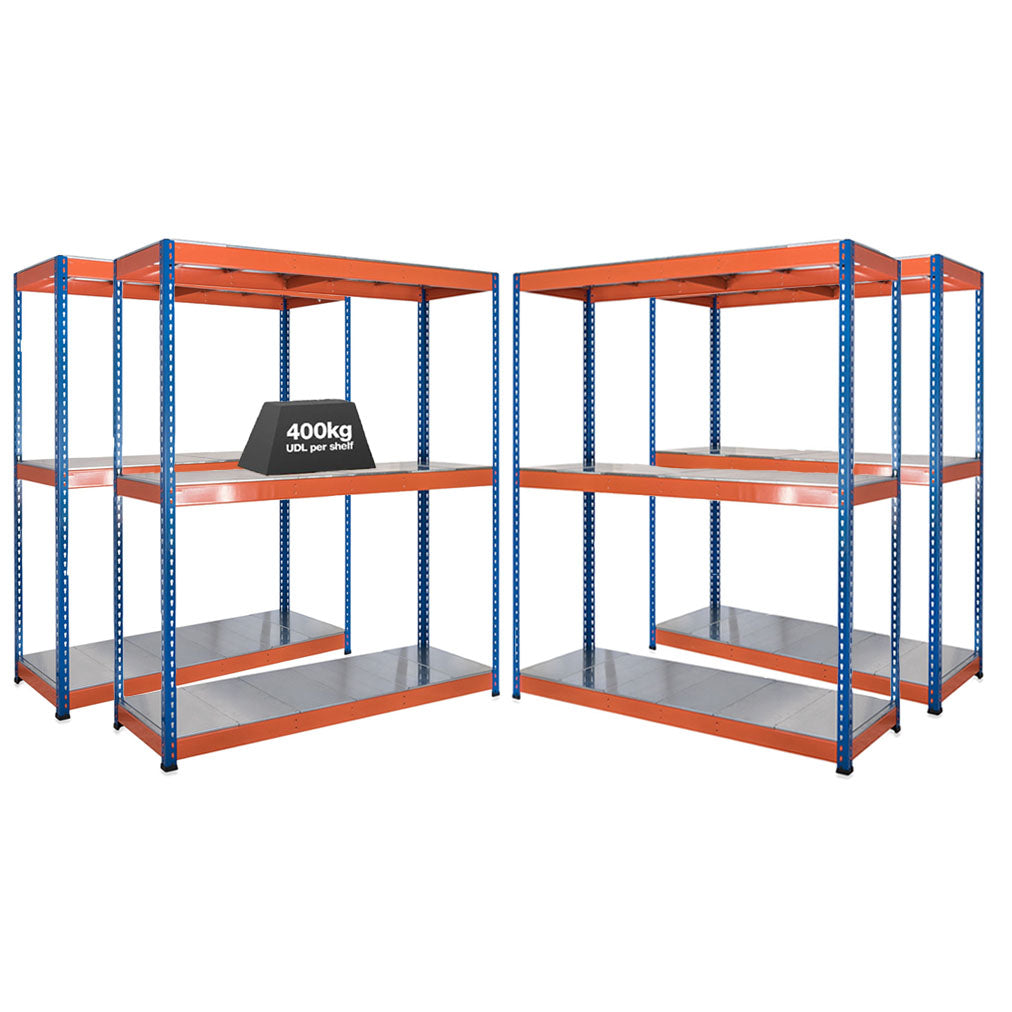

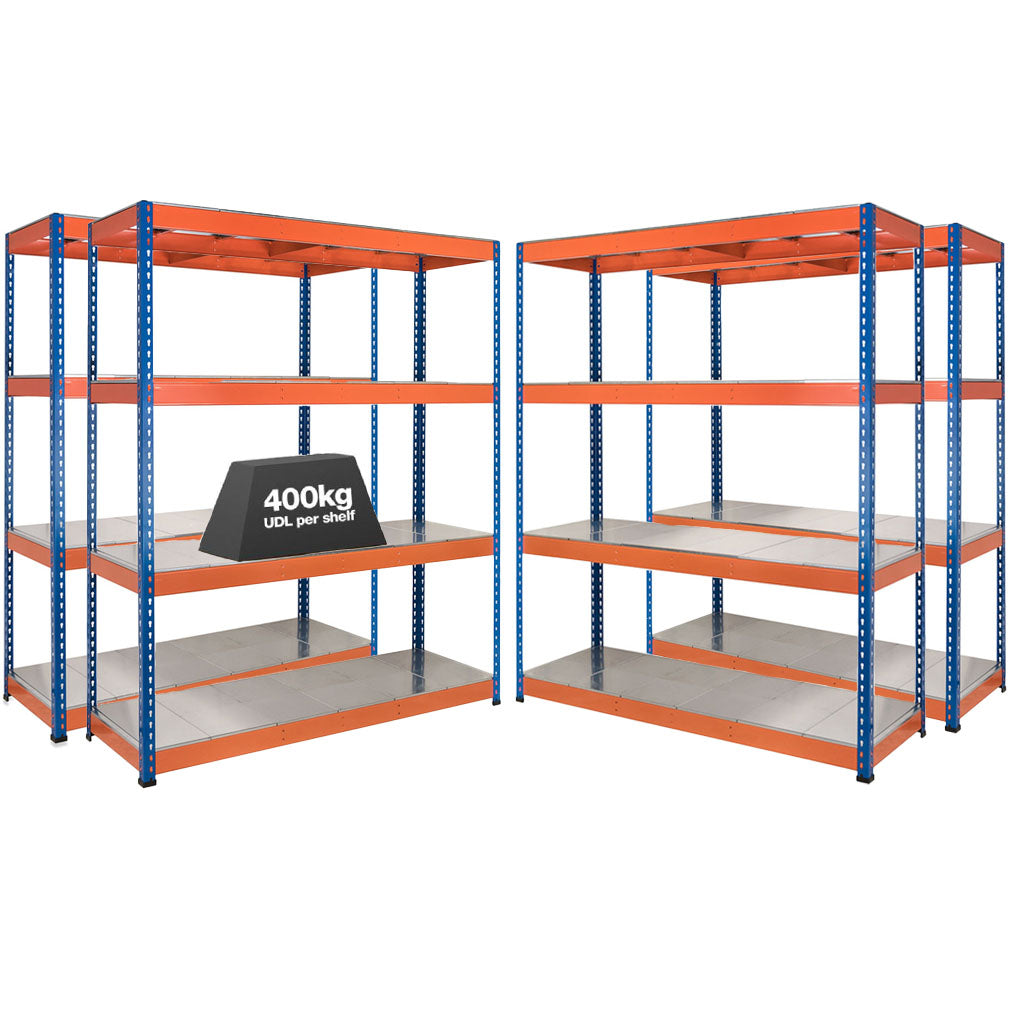

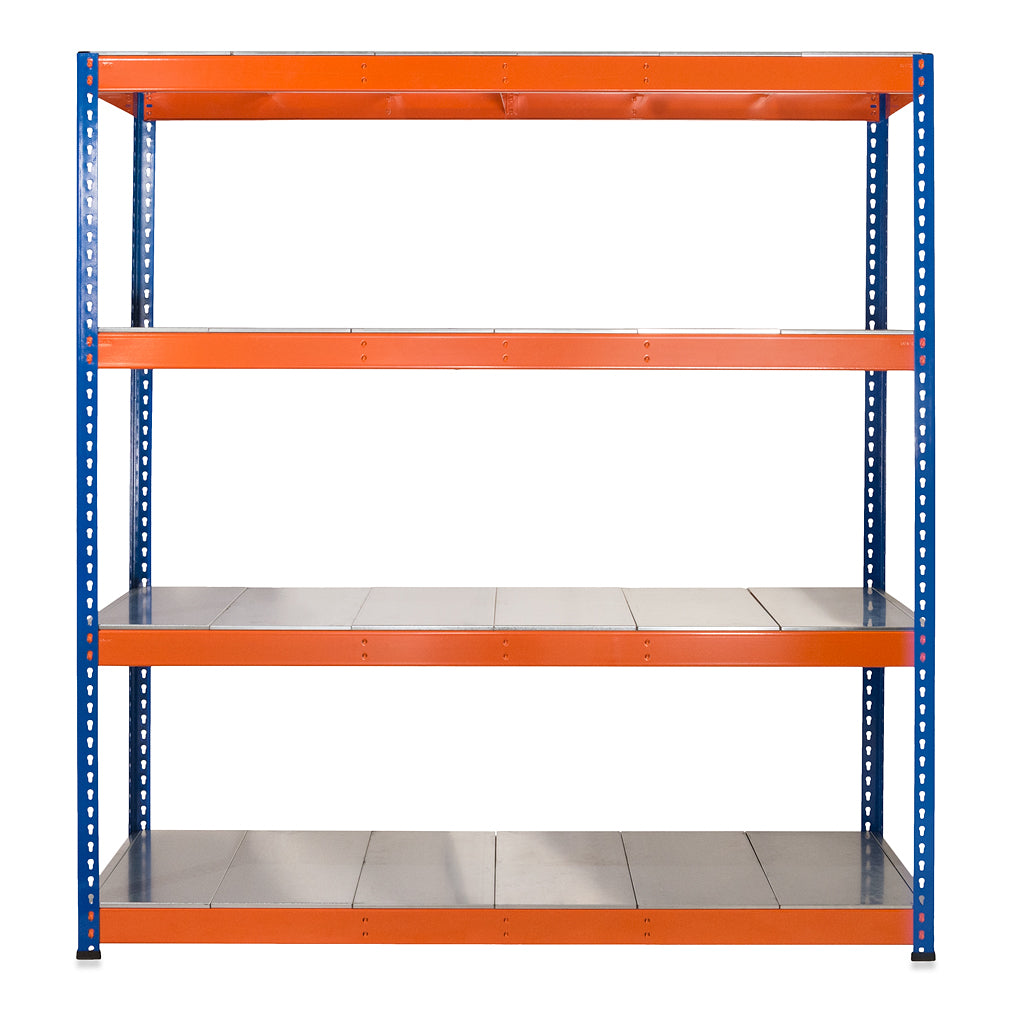

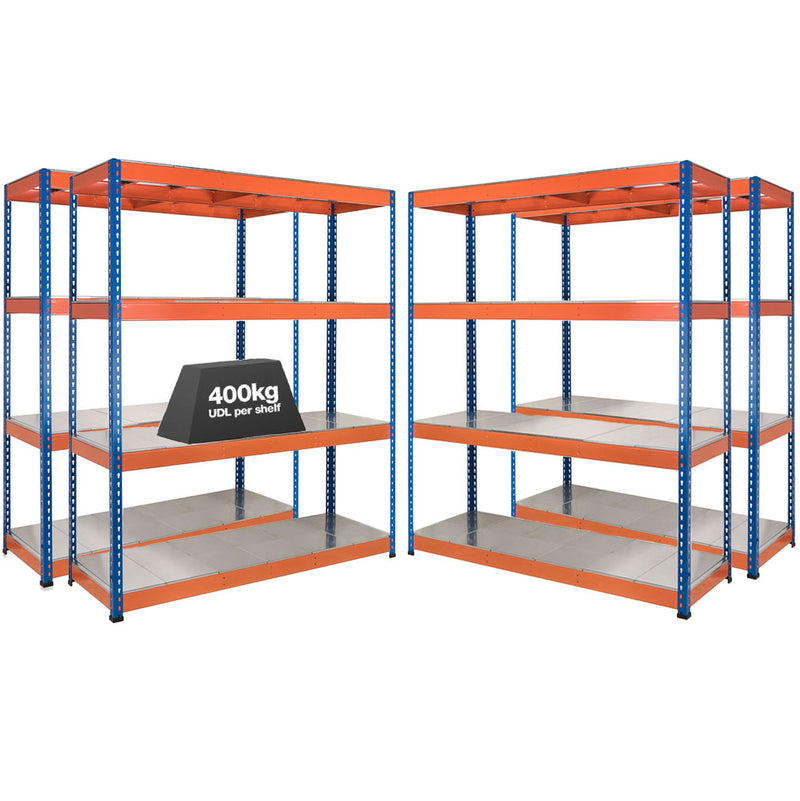

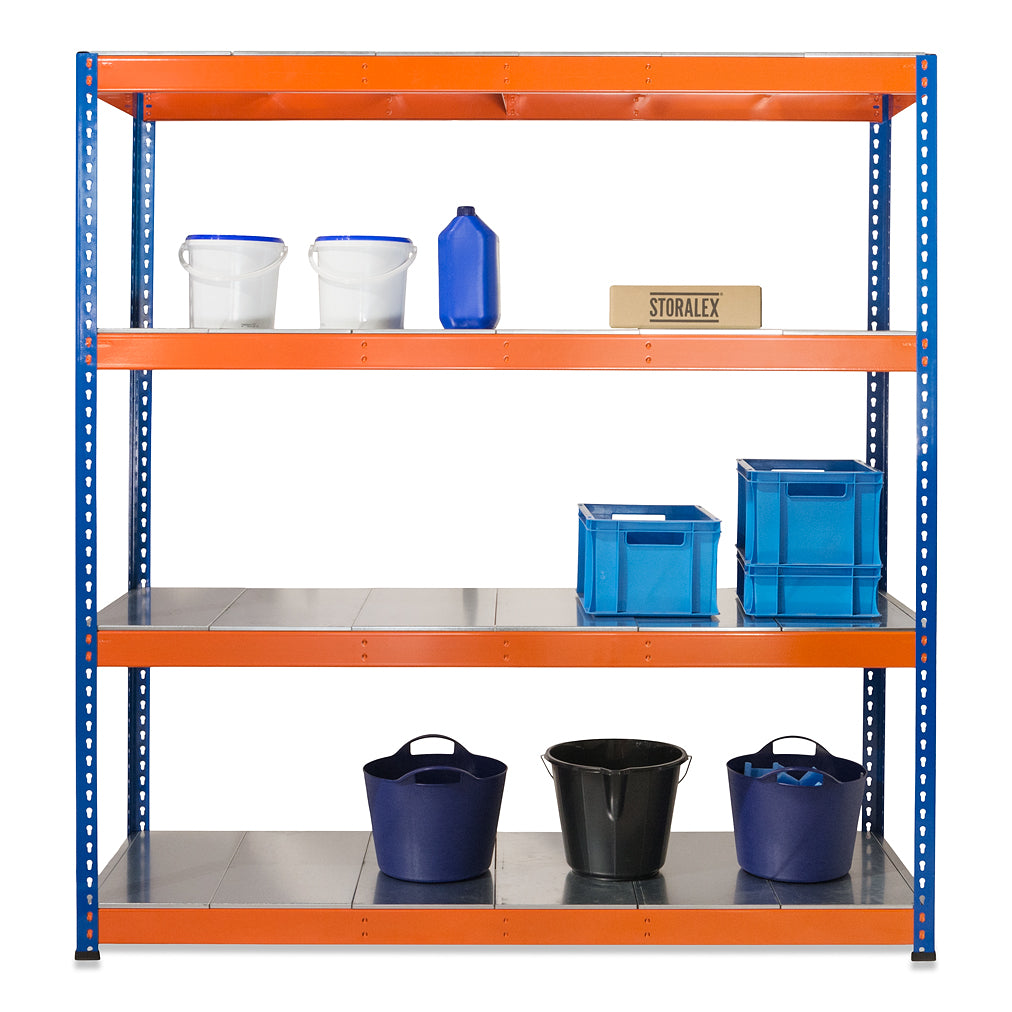

4x SX400 Industrial Shelving - 1980mm High - 400kg - Steel - Blue & Orange

Save £649.20
32 reviews

Key Features:

  • Up to 500kg per shelf, 2,500 per bay (UDL)

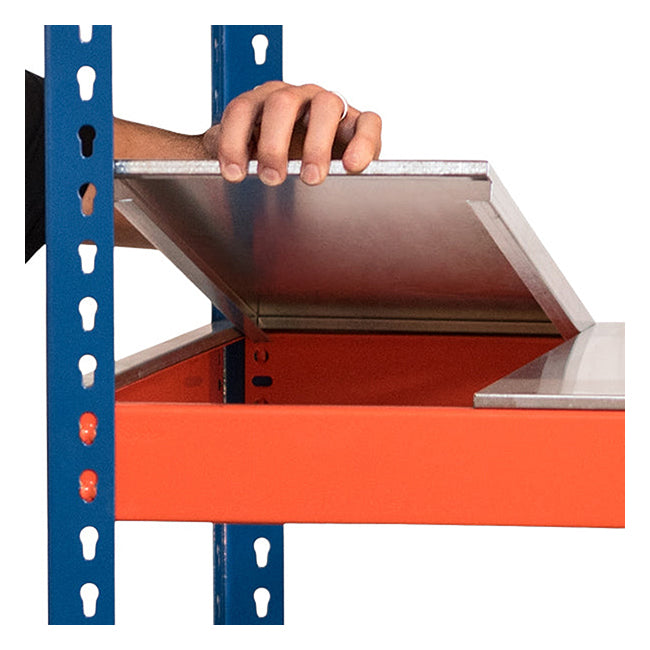

  • Flush fitting sheet steel decks
  • Adjustable shelf height every 3.8cm
Height (mm):
Shelf Type:
Number of Bays:
Colour:
Width (mm): 1525
Depth (mm): 455
Levels: 3
Load Per Shelf (UDL):
400kg
WAS £1,731.59 FROM ONLY Price £1,082.39 INC VAT
FROM ONLY WAS £1,442.99 Price £901.99 EX VAT
PRICE PROMISE
VIEW OPTIONS

Code: AJFB

Key Features of SX400 Steel Shelving


  • Strong galvanised steel panels, tested up to 500kg UDL per shelf
  • 3/4/5 decks of steel panels as standard with each bay
  • Single piece uprights with durable powder coated finish
  • Total load capacity of up to 2,500kg UDL per bay
  • Steel support beams on each level for extra reinforcement
  • Suitable for daily use within a commercial/industrial environment
  • Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
  • Low profile shelf beam design maximises storage space
  • Built to ISO manufacturing standards and FEM approved
  • Purchase additional shelves to suit storage requirements
  • Quick & easy construction, assembly mallet provided with each order
  • Full range of accessories such as joining tie plates available
  • Adjustable shelf height every 3.8cm (1.5 Inches)
  • Accessible from both sides, no back cross bracing needed
  • Free Rubber Assembly Mallet


Recommended Uses:


  • Regular picking
  • Bulk storage
  • Archive & document storage
  • Heavy cartons
  • Domestic items


Product Overview


The Storalex SX400 range of heavy duty steel shelving is our most popular commercial system. Commonly installed within warehouses and factories for over 25 years, the SX400 range is one of the most robust and reliable shelving systems on the market.

Capable of safely holding large, heavy and bulky items this range is ideal for retail stockrooms as well as long term archive storage. The tried and tested boltless ‘stud and keyhole’ design makes these quick to assemble and also adjust when storage requirements change.

Rigorously tested to FEM (European Federation of Material Handling) standards these units also comply with all relevant ISO manufacturing quality requirements.

This item is in stock unless otherwise stated, simply order before 4pm and we’ll deliver the very next day. If you’re not after next day delivery, simply choose a convenient delivery date whilst checking out and we’ll deliver on a day of your choice.

Please note to protect large and heavy items during transit your order may be palletised, however the delivery lorry will have a tail lift and delivery is to the kerb side/loading bay.

SX400 Steel Shelving Guide

SX400 Industrial Shelving Guide

Fitting Guide For SX400 Industrial Shelving Units

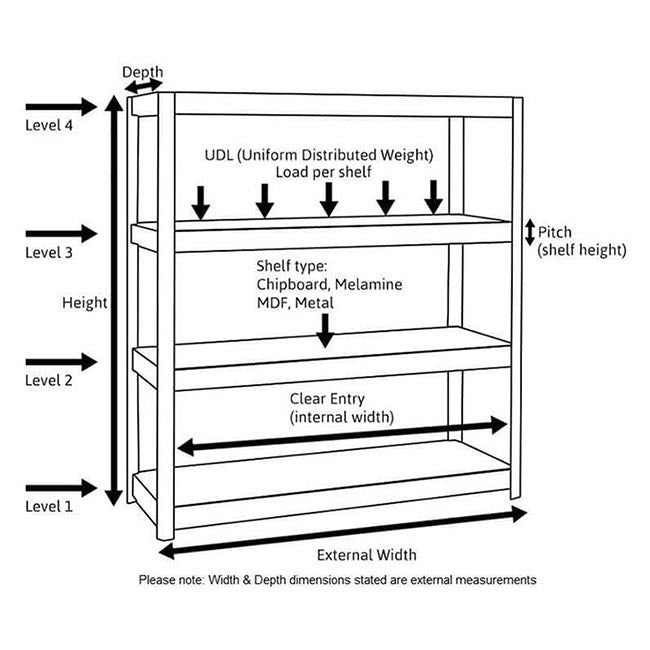

External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm

Data

1220w

1525w

1830w

2135w

2440w
Upright one piece one piece one piece one piece one piece
Shelf Adjustment (mm)
38.1 38.1 38.1 38.1 38.1
Clear Entry (mm)
1135 1440 1745 2050 2355
First Bay External (mm) 1232 1537 1842 2147 2452
Additional Bay External (mm) 1239 1544 1849 2154 2459
Total Bay Capacity 1677h 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 1980h 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 3050h 1320kg 1320kg 1320kg 1320kg 1320kg
Upright Steel Thickness (mm) 1.5 1.5 1.5 1.5 1.5
Beam Steel Thickness (mm) 1.5 1.5 1.5 1.5 1.5
Chipboard Thickness (mm) 15 15 15 15 15
Melamine Thickness (mm) 15 15 15 15 15
Steel Thickness (mm) 0.8 0.8 0.8 0.8 0.8
Height of Shelf (mm) 94
94
94
94
94
